|Product Name:||Plastic Tie Machine For Bundling Cable Fast||Brand:||SWIFT|
|Model:||SWT36100H||Cable Ties:||W3.6 * L100mm (Loose)|
|Tie Model:||T36100||Operation Speed:||0.8S|
Bundling Diameter 18mm Automatic Cable Tie Machine SWT36100H With Tool Gun

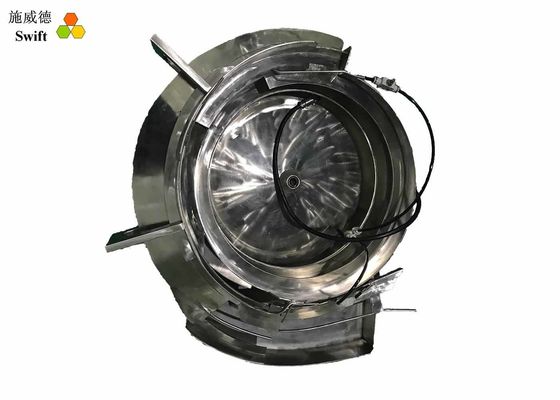

SWT36100H is an automatic cable tying system which could bundle objects diameters from 3mm to 18mm. The system consists of the vibration bowl, the host machine and a tool gun.
1. Electrical operated, AC220V, 50/60Hz, Euro plug available. Pneumatic pressure: 5kg/cm³
2. Cycle time: 0.8S. It means that Bundling one cable tie takes 0.8S.
3. Automatic threading, pulling and tightening, cutting without hands operation.
4. Tension forces are adjustable.
5. Within the diameter 18mm, it could automatic bundle.
6. Use loose cable ties, T36100.
7. Be fitted to full automation line through adding a robot arm (customized).
8. The waste materials could be collected in a box or a tin.
9. The tool head is small and could be overhead suspender (customized).
10. Be used as a fixed type possible (customized).
Certificates and approvals
The tool gun has two jaws. When you push the trigger, please let the up-jaws aim at the objects. It could bundle the fishing net, the camouflage net, plastic tubes, the wirings etc.
|Name||Automatic Cable Tie Machine SWT36100H|
|Description||Automatic threading, pulling, tightening and cutting cable ties|
|Features and advantages||
1. Automatic bundling bulk cable ties;
2. Automatic adapting different diameters of all kinds of wires, tubes;
3. Automatic counting the quantity of cable ties bundling successful.
4. Automatic detected ties failure or success and deal with it.
|Bench mount kit||Including an alloy support, a foot pedal(customized)|
|Overhead suspender||Overhead suspender possible(customized)|
|Cable ties||T36100, bulk cable ties|
|Usage/per time in vibration bowl||Less 300pcs|
|Bundling Max Dia. for wire||Ø18.0mm|
|Bundling Max Dia. for tube||Ø16.0mm|
|Bundling Max Dia.||Ø3.0mm|
|Bundling speed||0.8S/cable tie|
|Tool head power||DC24V, automatic transfer|
|Power supply||AC220V, 50/60Hz, different plugs|
|Tension force||Adjustable by turn knob|
|SWT36100H Packing Details|
|Total qty of Export wooden case||2pcs|
|The host machine / wooden case||G.W./kg||90kg|
|Packing Size/cm||L83 * W82 * H70cm|
|The vibration bowl / wooden case||G.W./kg||76kg|
|Packing Size/cm||L75 * W68 * H100cm|
|Total G.W.||166kg( estimated)|
1. What is your payment term?
We accept 100%TT payment before ship and would arrange the production after confirm 70% deposit.
2. What shipment way do you suggest?
It depends on you. If you urgent to have the machine, it is ok for you by air or by express.
3. What is your after sale service?
We offer 1 year warranty and tech support all life. If you have any problems, pls free to contact us.
