PLC Control Automatic Cable Tie System , Tie Tying Machine Quickly Bundling

China PLC Control Automatic Cable Tie System , Tie Tying Machine Quickly Bundling supplier
PLC Control Automatic Cable Tie System , Tie Tying Machine Quickly Bundling supplier PLC Control Automatic Cable Tie System , Tie Tying Machine Quickly Bundling supplier PLC Control Automatic Cable Tie System , Tie Tying Machine Quickly Bundling supplier

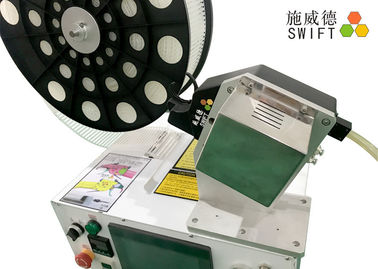

Large Image :  PLC Control Automatic Cable Tie System , Tie Tying Machine Quickly Bundling

Product Details:

Place of Origin: China
Brand Name: Swift
Certification: CE and RoHS
Model Number: SWT36200FC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden cases
Payment Terms: 100%TT
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Product Name: Automatic Cable Tying System Applications: Bundle Wires, Pvc Sleeve, Medical Pipe Etc
Model: SWT36200FC Bundling Diameters: 15mm - 42mm
Cable Ties: Reel Cable Ties W3.6 * L200mm Bundling Speed: 1.3S

4,000pcs Cable Tie Strap Automatic Cable Tying System For Quickly Bundling



This machine is more suitable to use in the assembly line. Cable tie gun can be fixed in the end of line. Operator sits down and holds items with hands. It starts to thread, tighten and cut off cable ties once tread the pedal. Doing these actions takes only 1.3S.



SWT36120FC base data



1 Description Automatic cable tying system
2 Brand SWIFT
3 Model SWT36200FC
4 Features/advantages

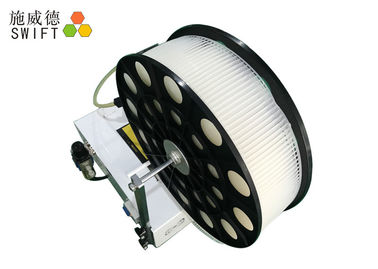

1. Using reel cable ties, 4,000pcs/reel

2. One petal to control all actions, including threading, tightening and cutting off cable ties.

3. With a cable tie gun that could be fixed in worktop.

4. Adapt different diameters items within ø42mm.

5. It is small and easy to move.

5 Cable ties info Type Cable Tie Strap/Reel cable ties
Model C36200
Overall width 3.6mm
Overall length 8inch (200mm)
Overall thickness 1.2mm
Tensile strength 15kg
Quantity/reel 4,000pcs
6 Usage/per time in vibration bowl 4,000pcs(without vibration bowl)
7 Product dimension Max bundling Dia. 43mm
Min bundling Dia. 15mm
8 Bundling speed 1.2S

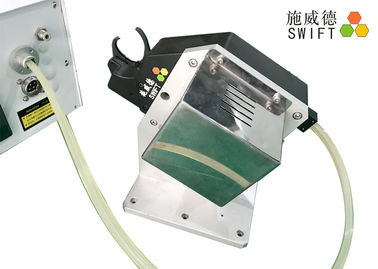

9 Cable tie gun details Out power DC48V auto switch
Size L29.9 * W24.0 * T14.9cm
Tension forces Adjustable
10 Power supply AC100V – 120V, , 50/60Hz; AC220V – 240V, 50/60Hz
11 Pneumatic pressure 5kg/cm²
12 Max Power 1,000W
13 Certificates CE and RoHS



SWT36200FC advantages



1. Small without vibration bowl.



2. One petal to control all actions, including threading, tightening and cutting off cable ties.



3. Adapt different diameters items within ø42mm.



4. You could set the quantity of cable ties bundled and the machine could record the actual number.



5. Tension forces are adjusted by turning knob.



6. Auto detecting jammed and dealing with by itself.



7. With temperature controlling system that could protect ties toughness.



Application



Home appliance Wire harness inside fan, air conditions, fridge
Auto industry Auto oil pipes
Food industry Bags sealed, the food label fixed, crab claws bundled
Offshore fishery Fishing net
Moto coil industry Fixing wires led out of motor stator, motor coil



Packing details



SWT36200FC Packing Details
Export wooden case 1pcs
The host machine / wooden case G.W./kg 56kg
Packing Size/cm L65 * W69 * H58cm
The vibration bowl / wooden case G.W./kg 0kg
Packing Size/cm 0
Total G.W. 56kg( estimated)



FAQ



1. How long does it take to bundle all cable ties?



There are 4,000pcs cable ties in reel. In theory, it takes about 1.5h.



2. What is MOQ?



MOQ: 1pcs.



3. What size does the machine use?



Reel cable ties: C36200, W3.6 * L200mm.
