0.8S Fast Bundling Cable Tie Tying Machine Binding Force Adjustable
Professional manufacturer of automatic cable tie tool. SWT25100D could bundle cable without hands’ threading, tightening and cutting. It is more durable and stable than others.
SWT25100D features
1. Using cable ties T25100, bulk package 1,000pcs/bag.
2. Cable ties: W2.5mm * L100mm, good quality without burr / flash.
3. The bundling speed is 0.8S. It can’t be adjusted.
4. Start to bundle cable/objects once tread foot pedal.
5. The binding force can be adjusted by PE engineer.
6. It looks like a desk and moves easily with 4wheels.
SWT25100D parameters
| SWT25100D automatic cable tying machine | |||||||
| Model | Cable tie size | Qty in vibration bowl | Binding Dia. | Operation speed | Pneumatic pressure | Max Power | |
| SWT25080D | Width | 2.5mm | 280pcs(suggest) | 2 - 16mm | 0.8S | 3kg/cm² | 1,000W |
| Length | 100mm(4inch) | ||||||
| Tie thick | 1.1mm | ||||||
| Tensile strength | 8kg | ||||||
| Machine size | L106 * W66 * H77cm; Weight: 122kg | ||||||
| Power supply | AC220V, 50/60Hz, kinds of plugs | ||||||
Applications
Simple wires/cable bundling, harness with PVC sleeve
How to work for cable tie tying machine?

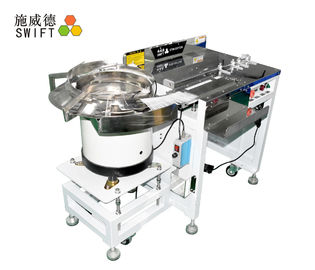

Cable tying machine SWT25080D consists of a vibration bowl, a host machine like a desk and the jaws.
The vibration bowl would sort, re-rank cable ties and send them the position of jaws. Tread foot pedal, the machine would start to wrap cable ties and cut off the tail part of them.
Other products
We are professional manufacturer of automatic cable tie tool. We have at least 6years experience in this industry. We can offer you the best quality machines to you. Other types as below:
1. Handheld automatic cable tie tool.
2. Fixed type automatic cable tie tying machine.
3. Professional automatic cable tie tool for motor coil.
4. Automatic cable tie system (using reel cable ties).
5. Desktop automatic cable tie tool.
6. Automatic cable tie tool with robot arm.
Our products are sold all over the world, you can rest assured.
