PLC Controlling Wire Tying Machine High Working Efficiency For Motor Coil

China PLC Controlling Wire Tying Machine High Working Efficiency For Motor Coil supplier
PLC Controlling Wire Tying Machine High Working Efficiency For Motor Coil supplier PLC Controlling Wire Tying Machine High Working Efficiency For Motor Coil supplier

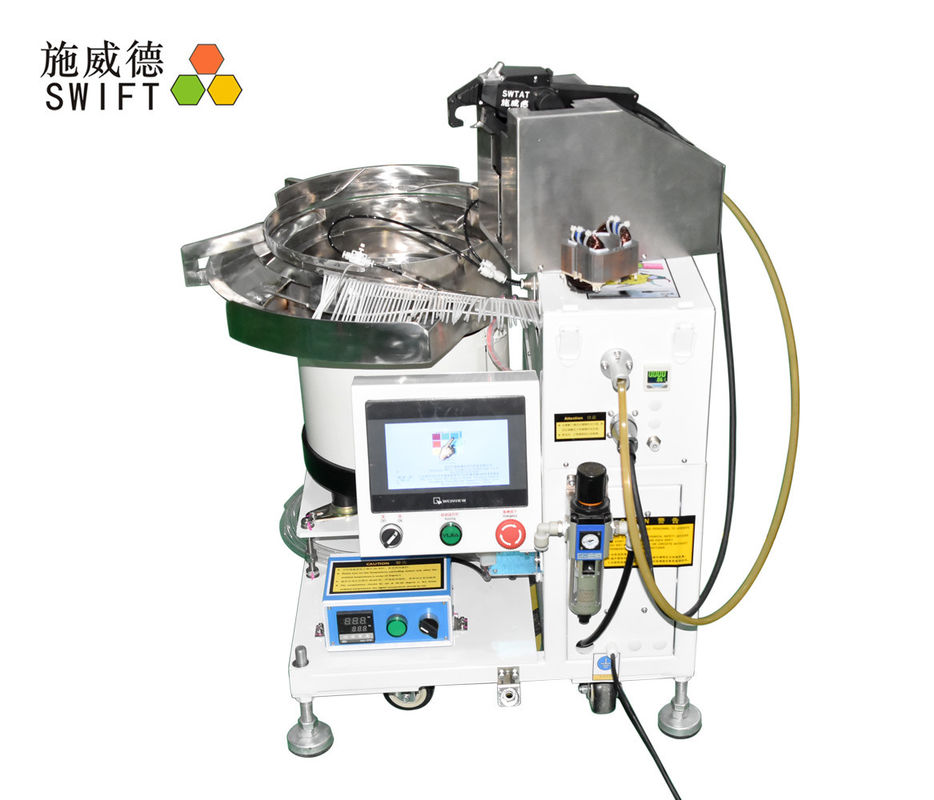

Large Image :  PLC Controlling Wire Tying Machine High Working Efficiency For Motor Coil

Product Details:

Place of Origin: China
Brand Name: Swift
Certification: CE
Model Number: SWT25120M

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 10 - 15days
Payment Terms: 100% T/T payment before shipment
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Auto Cable Tie Machine For Motor Coil Model: SWT25120M
Cable Ties: W2.5mm * L120mm Tie Thick: 1.1mm
Tie Head Size: L4.6 * W4.7 * H4.8 Bunding Dia.: 11mm - 15mm

Small Room Bundling Automatically Cable Tie Machine For Motor Coil



It is the first one of cable tie machine for motor coil and the objects with small room for cable ties bundled.



Why do you choose SWT25120M cable tie machine?



It is suitable for using it the assembly line. It improves the working speed and saves much time.



SWT25120M advantages



1 . Be suitable for motor coil bundling which has been winded on stator core in advance. 1.2secondds to finish binding it with cable tie.



2 . Vibration feeding automatically that prevents you picking cable tie up one by one.



3 . PLC control and touch screen, easily manage.



4 . A collecting waste material system with a vacuum pump that is useful to collect the cable tie waste.



5 . The machine could detect whether cable ties bundle successfully or not. It could deal the failed cable tie automatically and restart.



SWT25120M basic information



Product name Automatic cable tie machine Model SWT25120M Using type Fixed type
Zip tie type Loose cable ties Cable tie width 2.5mm Cable tie length 120mm
Size of host machine Length 725mm Weight of host machine 146kg Material Metal
Width 710mm
Height 670mm
Size of gun head Length 350mm Weight of gun head 6kg Certificate CE, RoHS
Width 282
Height 189mm
Power supply

AC220V, 50 / 60Hz ;



AC110V, 50 / 60Hz ;

Power 1000W Pneumatic pressure 5kg / cm²



SWT25120M technical data



Bundling Max Dia. for motor coil Ø15mm



Bundling Min Dia. for motor coil



Ø11mm

Operation speed 1.2S per cable tie Actual pneumatic pressure

3 - 5 kg / cm²

suggest

Temperature 40℃ suggest Qty of cable ties per time in vibration bowl

200pcs per time







Applications



Motor coil with stator core or objects with small room for cable tie bundled



SWIFT advantages



Our company:



Professional engineers graduated from famous universities.

They ever worked as the weapon designer or worked in large multinational enterprises for many years.

The assembly engineer worked in Japanese automation companies many years



Our products:



Most of products have been patented. We have more than 30patents with automatic cable tie tool design and software.



FAQ



FAQ
Questions Answers
1 . What is the difference between SWIFT cable tie tool and traditional cable tie gun? SWIFT cable tie gun can automatically bundle objects with cable ties cut off it. The traditional tool does these operations by hand. It is very slowly.
2 . Can I visit your factory? Welcome to our factory in Shenzhen.
3 . Have you attended some fairs? We would attend many fairs every year home and abroad. We had attended the fair in Munich German and in HK.
4 . Do you accept the agents? Yes, welcome to join in us.
