Payment & Shipping Terms:
|Name:||Automatic Cable Tie Gun||Application:||Bundle Motor Coil|
|Model:||SWT36120M||Cable Ties Type:||Loose Cable Ties|
|Cable Tie Width:||3.6mm||Cable Tie Length:||120mm|

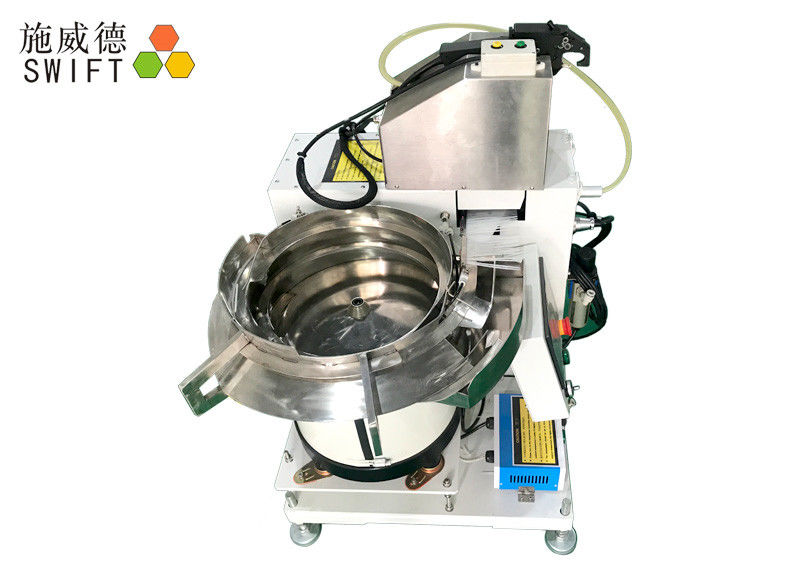

SWT36120M Automatic Cable Tie Gun Automatic Bundling Diameter 15mm

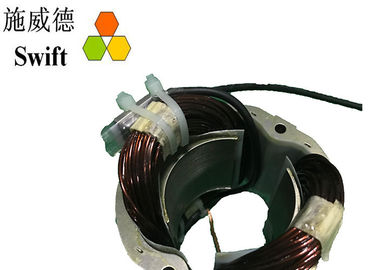

SWT36120M has a special gun which could bundle motor coil winded on stator core already through cable ties. It also can bundle wirings but it is better to choose another types.
1 . It is the first automatic cable tie machine for bundling motor coil in the world.
2 . The cable tie tool could automatically bind the object that is with small room for cable tie go through.
3 . With the function of automatic detect failure. The machine would stop once find there is any malfunction, and deal with the failed cable tie, then restart the machine automatically.
4 . Turn the rotary button, the tightening force is adjustable.
5 . Using bulk cable ties, 1,000pcs cable ties in a bag. Using 200 – 300pcs per time into the vibration bowl.
6 . Power supply : AC220V 50 / 60Hz; Pneumatic pressure :5kg/cm².
Why to choose us?
1 . We are a manufacturer who can offer you affordable prices.
2 . We have more than 18years history in automation industry.
3 . We have a strong R & D department. Some had ever got training on Euro and designed many full-automation lines with European engineers.
4. Our machines is reliable, stable, high quality, compared with the counterfeit of cable tie tool.
SWT36120M Base data
|Color||White and black|
|M||M means motor coil|
|The movable plate||none|
|Pack cont.||1,000pcs (suggest using 200 -300pcs per time)|
|Package Quantity per||bag|
|Tool suitable cable tie material||Plastic cable ties|
|Product name||Automatic cable tie tool|
|The host machine||L725 * W710 * H670mm|
|The gun tool||L331 * W282 * H189mm|
|The gun power||DC24V (auto switch)|
|Power supply||AC220V 50 / 60Hz|
SWT36120M Product Dimensions
|Bundle ø Max||Ø15mm|
|Cable tie width||3.6mm|
|Cable tie length||120mm|
|Flammability||UL 94 V2|
|Material||PA 66 ( U4820L )|
|Operating temperature||-30℃ - 80℃ ( special cable ties can be supplied )|
|Using cable ties||2.5 * 80mm||2.5 * 100mm||2.5 * 120mm||3.6 * 100mm||3.6 * 120mm|
|Cable ties type||Regular cable ties, loose cable ties|
|Bundling Max Dia.||Ø10mm||Ø13mm||Ø15mm||Ø13mm||Ø15mm|
|Bundling Min Dia.||Ø5mm||Ø9mm||Ø11mm||Ø9mm||Ø11mm|
1 . Do you have the patent certificates?
Yes, we have more than 30 certificates on SWIFT cable tie tools.
2 . Where could I purchase such good machine?
Please contact our sales team. They would give you more info.
3 . What is your payment terms?
100% TT payment before shipment. We would arrange the production once receive the payment on our bank account.
