OEM Automatic Bundling Machine , Nylon Cable Tie Tool PLC Control With Touch Screen

China OEM Automatic Bundling Machine , Nylon Cable Tie Tool PLC Control With Touch Screen supplier
OEM Automatic Bundling Machine , Nylon Cable Tie Tool PLC Control With Touch Screen supplier OEM Automatic Bundling Machine , Nylon Cable Tie Tool PLC Control With Touch Screen supplier

Large Image :  OEM Automatic Bundling Machine , Nylon Cable Tie Tool PLC Control With Touch Screen

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Swift
Certification: CE and RoHS
Model Number: SWT36150FC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 10 - 15days
Payment Terms: 100% T/T before ship
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Nylon Automatic Cable Tie Machine Model: SWT36150FC
Application: Bundling Goods Cable Ties: W3.6 * L150mm (REEL)
Power Supply: AC220V, 50/60Hz Pneumatic Pressure: 5kg/cm²

Automatic Nylon Cable Tie Machine Bundling Max Diameter 31mm With Wire Tie Gun

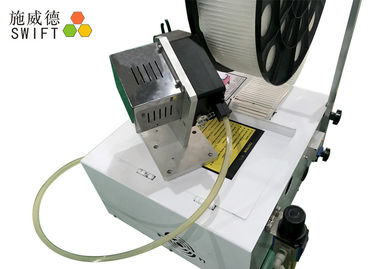

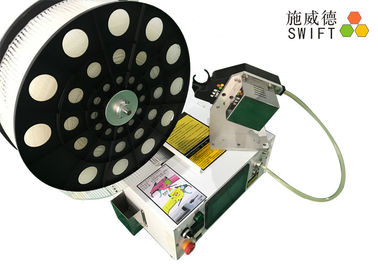

Automatic nylon cable tie machine consists of the host machine and the wire tie gun. The wire tie gun could automatically thread, pull and tighten, cut off cable ties. It is fixed in the bench so operators can use two hands to hold the object.



SWT36150FC advantages



1. Use strip/reel cable ties, 4,000pcs/reel.



2. The host machine is small and can be placed on the desk.



3. Push the foot pedal, it start to bundle.



4. 1.2S to do all operations( thread, tighten ,cut off ).



5. The binding forces from 2kg to 8kg are adjustable.



6. It could count the qty of cable ties that bundle successful.



7. If any cable tie jammed in the gun, the machine would clean it and restart automatically.



8. PLC control and touch screen.



SWT36150FC parameters



Automatic cable tie tool SWT36150FC – fixed gun type
Model SWT36150FC
Cable tie type Reel cable ties
Cable tie size width mm 3.6
inch 0.141"
Length mm 150
inch 5.90"
Tie thick mm 1.2
inch 0.047"
Tensile strength IBS 31
KG 14
Bundling diameter mm Ø3 –ø31
Operation speed seconds 1.2
The host machine size mm L710 * W470 * H230
The gun head size mm L271 * W116 * H74
Power supply V AC220V, 50 / 60Hz
The gun power v DC48V auto switch
Pneumatic pressure Kg/cm² 5



How to use SWT36150FC?



Place reel cable ties in the host machine – Power on – Click “Auto” – Treat the foot pedal – start to bundle



Remark

1. In the beginning of using, don’t use the max tensile force if possible.

2. The gun has a run-in period about 2 – 3weeks.

3. Auto mode is for user. Manual mode is for engineers.



Applications



Wire harness: wiring harness inside white goods, auto wires.



Motor industry: motor coil, wires.



Food industry: labels, bottles,bags etc.



Electronic parts: the wires connected with PCBA, the energy box, the connectors



Other products



cable tie type Reel cable ties
Model SWT25100FC SWT36150FC SWT36200FC
cable tie size width mm 2.5 3.6 3.6
inch 0.098" 0.14" 0.14"
Length mm 100 150 200
inch 3.93" 5.9" 7.8"
Tie thick mm 1.1 1.2 1.2
inch 0.04" 0.05" 0.05"
Tensile strength IBS 18 30 33
KG 8 14 15
Bundling diameter Ø2 –ø18 Ø3 –ø31 Ø15 –ø42
Operation speed 1.1S 1.2S 1.3S
