Bundling Diameter 10mm Cable Tie Cutting Machine For Cable Assemblies

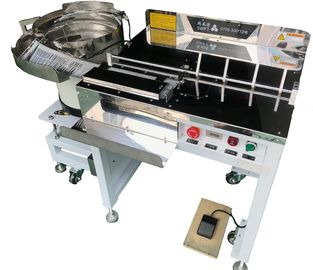

The machine could automatically thread and cut off cable ties. It takes 0.8S to bundle one cable tie. It is faster than by hands. It looks like a desk and worker can sit down in front of it to operate.
SWT25080D advantages
1. Loose cable ties are sorted by the vibration bowl.
2. Push the foot pedal, automatically feeding, tightening and cutting off ties.
3. 4 wheels, easy to move.
4. You can adjust the binding forces.
5. One key controls, no touch screen.
6. High quality, more reliable and stable than other’s company
| Automatic cable tie machine SWT25080D– Like desk | |||
| Model | SWT25080D | ||
| Cable tie type | cable ties bulk | ||
| Cable tie size | width | mm | 2.5 |
| inch | 0.1＂ | ||
| Length | mm | 80 | |
| inch | 3.1＂ | ||
| Tie thick | mm | 1.1 | |
| inch | 0.04＂ | ||
| Tensile strength | IBS | 18 | |
| KG | 8 | ||
| Bundling diameter | mm | Ø2 –ø10 | |
| Operation speed | seconds | 0.80s | |
| The host machine size | cm | L104 * W64 * H75 | |
| The gun head size | cm | Without gun tool | |
| Power supply | V | AC220V, 50 / 60Hz, Euro plug | |
| Pneumatic pressure | Kg/cm² | 3 | |
How to use SWT25080D?
Place cable ties in the bowl – Power on – Push the pedal – start to bundle
Remark:
1. The machine should be placed in the flat ground.
2. 200pcs – 300pcs cable ties are enough in the bowl every time. Too many would lead to the vibration feeding not well.

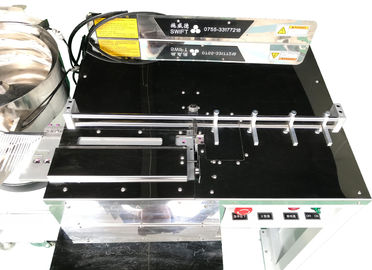

3. If you want to bundle the wires in a specific location, you can adjust the locations of the movable work-pieces in the desk.
Applications
Simple wire cables
Company service
1. Tech support.
Our factory has a strong R & D department. All products are patented products. No one would know more about these products than us.
2. Before sales service.
We could offer related videos FYI according to the goods that you want to bundle with cable ties.
Or you could send the goods to our factory and we can offer you videos too.
Customized machine is no problem.
3. After sales service.
Tech support all life and 12months warranty. If any problems, pls contact us any time and we are here for you.
FAQ
|
FAQ |
|
|
Questions |
Answers |
|
1. How mangy machins do you have like this type? |
1. Two. SWT25080D and SWT25100D. |
|
2. Do you offer sample? |
2. We could offer videos for your check and free cable ties as samples, but not for machines. |
|
3. What is the residual tail length? |
3. After cut off cable ties by our machies, that would leave a cable tie head and a little tail part. The length is between the head and the tail. |
|
4. How to operat SWT25080D? |
4. Push the foot pedal please. |
Our products are sold all over the world, you can rest assured.
