Payment & Shipping Terms:
|Product Name:||Auto Cable Tie Machine||Application:||Banding Cable Wire/plastic Tube|
|Size Of Cable Size:||3.6*100mm||Operation Speed:||0.8S|
|Host Size:||L690* W670*H670mm, Weight :140kg||Gun Size:||L250 * W102*H78mm Weight 0.86kg|

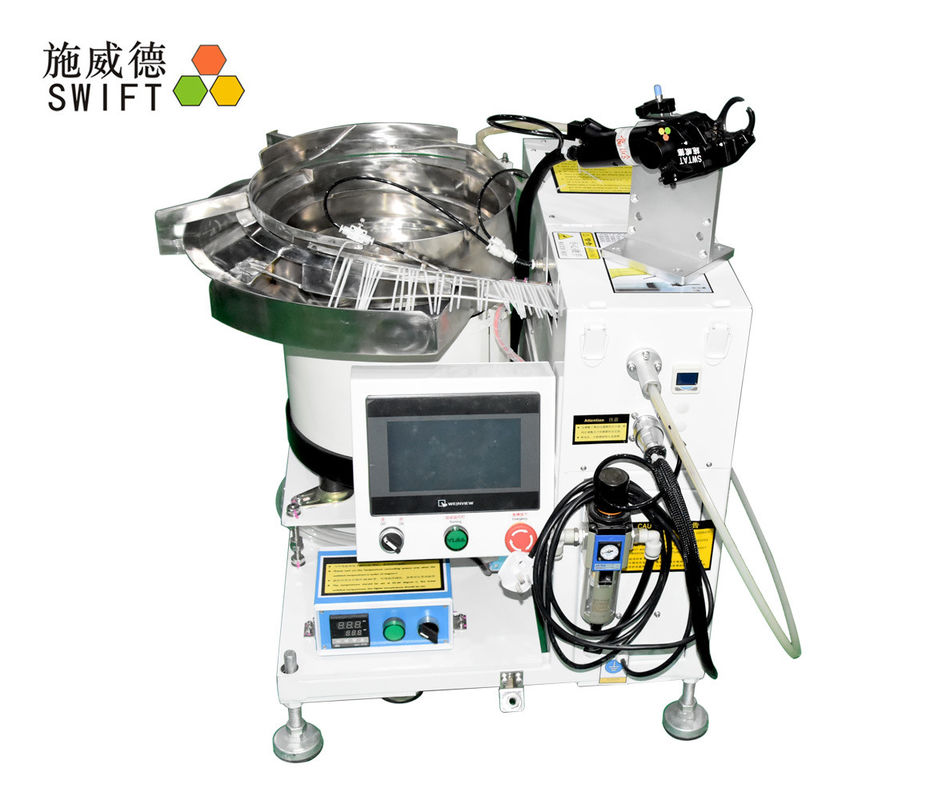

SWT36100H Auto Cable Tie Machine For Binding Cable Wire Max Dia. 18mm
The nylon cable tie machine automatically bind goods with cable ties. The max binding Dia. is 18mm.
Using cable tie dimension is W3.6 * H100mm.
|Product Name||auto cable tie machine||
Binding cable wire/plastic tube
|Size Of cable size||3.6 * 100mm||
Mix banding Dia.
Max banding Dia. for wire
|Max banding Dia. for tube||Ø16mm|
L250 * W102*H78mm
|Gun size||Weight 0.86kg|
1. Use bulk cable ties, vibration feeding, transferred to the Tool via hose.
2. Pedaling the pedal, automatically Wrapping, Perforating, Pulling & Tightening, Cut off, Collecting the waste material into waste tank.
3. By unscrewing the 2 screws, the Tool can be removed from the support and be used as handheld tool; mounting under desk, it works as Desktop type cable tie machine.
4. The whole operation takes only 0.6s, one machine can save 5-6 operators.
5. Different waste material collecting methods for choice.
6. Be suitable for the workpieces with step features.
74*70*85cm/wooden case, the host machine;
64*55*92cm/wooden case, the vibration bowl
Be suitable for the application of onsite assembly for Plane, Car, Train, Ship, Appliances, Telecom equipment, Toys, etc.
Be suitable for goods fixing & packing,bags fixing.
