|Name:||Auto Cable Tie Machine||Application:||Banding Cable Wire/plastic Tube|
|Size Of Cable Size:||Strip Cable Ties 2.5*100mm||Mix Banding Dia:||Ø3mm|
|Max Banding Dia. For Wire:||Ø18mm||Max Banding Dia. For Tube:||Ø16mm|
binding wire tying machine,
cable bundling machine

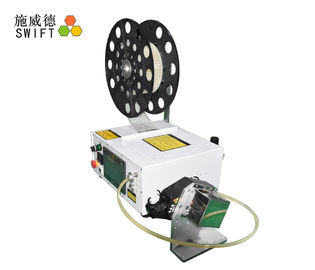

SWT25100FC Semi-auto Cable Tie Machine For Banding Cable Wire Max Dia 18mm
The machine can bind the cable wire with cable ties. The tis size is W2.5 * L100mm. The max binding dia is 18mm.

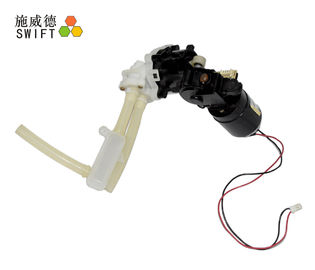

The gun head is fixed in the desktop.
|Cable tie spec||2.5*100 mm|
|Min banding Dia.||￠2 mm|
Max banding dia. for wire
Max banding dia. for tube
|Operation speed||1.1S/pcs cable tie|
|Electrical power||Host: AC 220V 50/60 Hz|
|Tool: DC 48V(automatic switching)|
|Pneumatic pressure||5 Kg/ cm²|
1 . Use strip type cable tie, compressed air push the cable tie to the Tool via hose.
2 . Automatically cope with different object diameter as long as the object diameter is within the spec range. No need any adjustment when dealing with different diameters of object.
3 . Different waste material collecting methods for choice.
4 . Be suitable for tightening those components which has step features.
5 . Could be fixed as desktop type; and could be applied to full automation line.
6 . Ergonomic hand shank design, comfortable to hold & operate.
1pcs / wooden case
Cable tie spec
|2.5 * 100mm||3.6 * 150mm||3.6 * 200mm|
Min banding Dia.
Max banding dia for wire/tube
|ø18 / ø16mm||ø30 / ø31mm||ø42 / ø40mm|
Host size (L * H * Hmm) &weight
|L710 * W470 * H230mm & weight 30kg|
gun size(L * H * T mm)
|250 * 102 * 64||257 * 73 * 74||274 * 73 * 74|
|Electrical power||Host : AC 220V 50 / 60 Hz
Gun : DC48V
|Pneumatic pressure||5 Kg / cm²|
