|Product Name:||Cable Tying Machine||Brand:||SWIFT|
|Tie Width:||2.5mm||Tie Length:||100mm|
|Application:||Binding Simple Cable|
bundle tying machine,
cable tying machine
0.8S Fast Bundling Cable Tie Tying Machine Binding Force Adjustable
Professional manufacturer of automatic cable tie tool. SWT25100D could bundle cable without hands’ threading, tightening and cutting. It is more durable and stable than others.
How to work for cable tie tying machine?

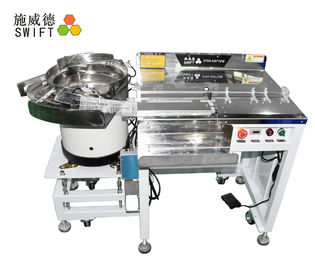

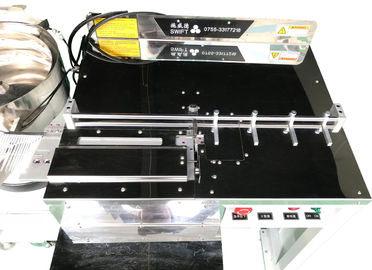

Cable tying machine SWT25100D consists of a vibration bowl, a host machine like a desk and the jaws.
The vibration bowl would sort, re-rank cable ties and send them the position of jaws. Tread foot pedal, the machine would start to wrap cable ties and cut off the tail part of them.
1. The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips.
2. Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3. 0.8 seconds to complete all actions including feeding, tape, tightening, cutting, polishing wastes, also including auxiliary time, the whole cycle a total of about 1.3 seconds.
4. A machine can replace 7-8 workers. A year can save wage costs over 20 million;
5. Start to bundle cable/objects once tread foot pedal.
6. The binding force can be adjusted by PE engineer.
7. It looks like a desk and moves easily with 4wheels.
|SWT25100D automatic cable tying machine|
|Model||Cable tie size||Qty in vibration bowl||Binding Dia.||Operation speed||Pneumatic pressure||Max Power|
|SWT25080D||Width||2.5mm||280pcs(suggest)||2 - 16mm||0.8S||3kg/cm²||1,000W|
|Machine size||L106 * W66 * H77cm; Weight: 122kg|
|Power supply||AC220V, 50/60Hz, kinds of plugs|
Simple wires/cable bundling, harness with PVC sleeve
We are professional manufacturer of automatic cable tie tool. We have at least 6years experience in this industry. We can offer you the best quality machines to you. Other types as below:
1. Handheld automatic cable tie tool.
2. Fixed type automatic cable tie tying machine.
3. Professional automatic cable tie tool for motor coil.
4. Automatic cable tie system (using reel cable ties).
5. Desktop automatic cable tie tool.
6. Automatic cable tie tool with robot arm.
