|Name:||Nylon Cable Tie Strapping And Cutting Machine||Model:||SWT25080D|
|Cable Ties:||W2.5mm * L80mm||Application:||Simple Wires Bundling|
|Bundling Dia.:||2mm - 12mm||Power Supply:||AC220V, 50/60Hz|
tie tying machine,
bundle tying machine

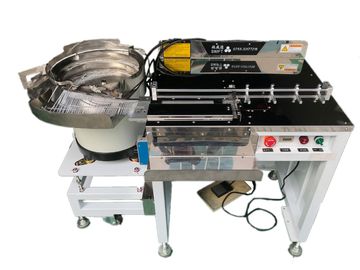

Nylon Cable Tie Strapping And Cutting Machine SWT25080D Desktop Type
SWT25080D is automatic cable tie tool. It could strap and cut of cable ties when to push the foot pedal. It can bundle the max diameter 12mm wirings.
1 . Use bulk cable ties, W2.5 * L80mm. Head size L4.6 * W4.6 * H3.7.
2 . There is a metal bar in the desk. It can be used as a ruler by adjusting the locations of movable buttons.
3 . The tensile force is adjustable. The residual tail length is adjustable.
4 . The force is controlled by the mechanical device. It would be more accurate and stable.
5 . Binding Min Dia. 2mm; Max binding Dia. 12mm
6 . Be suitable for using in door. Power supply AC220V, 50 / 60Hz, pneumatic pressure 3kg/cm³.
SWT25080D Base data
|Color||White and black|
|The movable plate||None|
|Package Quantity per||Bag|
|Tool suitable cable tie material||Plastic|
|Product name||Automatic cable tie tool|
|The whole machine||L1040 * W640 * H750mm|
|The weight of the host machine||120kg with 4 wheels|
|The gun head||None|
|The weight of gun head||None|
SWT25080D Product Dimensions
|Bundle ø Max for wire||Ø12mm|
|Bundle ø Max for tube||Ø10mm|
|Bundle ø Min||Ø2mm|
|Cable tie width||2.5mm|
|Cable tie length||80mm|
|Flammability||UL 94 V2|
Quality assurance :
Our factory has passed ISO9000:2015. All products are produced under this management system and have passed CE, Reach and RoHS.
Quality control :
All machines would be tested at least 1,000 – 2,000times to ensure the reliable and stable. The chief assembly engineer would spend one more day to test it again.
1 year warranty and tech support forever.
|Desktop Type auto cable tie machine|
|Cable tie spe||W2.5 * L80mm||W2.5 * L100mm|
|Cable tie type||Loose cable ties|
|Max Bundling Diameter||For wires||ø12mm||For wires||ø16mm|
|For tube||ø10mm||For tube||ø14mm|
|Min Bundling Diameter||Ø2mm||Ø2mm|
|Power supply||AC220V, 50 / 60Hz|
