Allen-Bradley 5069-IA16 AC digital input module With 79-264V AC 16-point
5069 Compact I/O 16 channels AC input modules, supporting both 120 & 240 VAC signals
Product Description of 5069-IA16
AC digital input 5069-IA16 79...264V AC 16-point, input module

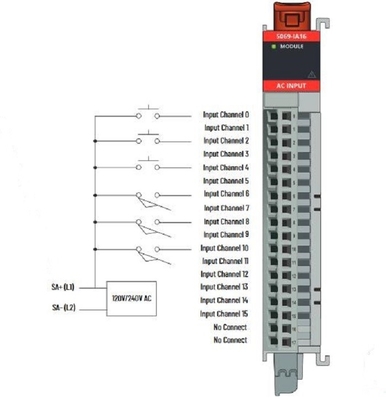

The 5069-IA16 module inputs use a shared common. The inputs have a return through internal module circuitry to the SA (–) terminal on the SA power RTB.
You use a 5069-FPD field potential distributor to establish a new SA power bus in a system. SA power buses are isolated from each other. To keep the modules on separate SA power buses, complete these steps.
1. Install the modules that use one type of SA power, for example DC, to the right of the adapter or controller, that is, the first SA power bus.
2. Install the 5069-FPD field potential distributor to establish a second SA power bus.
3. Install the modules that use the other type of SA power, for example AC, on the second SA power bus
Features of 5069-IA16
Rockwell Control System: Rockwell Controllogix
Processor Type: ARM Cortex-A9
Inputs/Outputs: Up To 256 I/O
Memory: 2GB RAM, 4GB Flash
Processor Speed: 1.5GHz
Communication Ports: Ethernet, Serial, USB
Technical Parameters of 5069-IA16
| Attribute | 5069-IA16 |
| On-state voltage min | 79V AC |
| On-state voltage, nom | 120/240V AC |
| On-state voltage, max | 264V AC |
| Off-state voltage, max | 40V AC |
| Input current per channel, max | 15 mA @ 264V AC |
| On-state current, min |
2 mA @ 79V AC 3 mA @ 164V AC |
| On-state current, nom |
5 mA @ 120V AC/50 Hz 6 mA @ 120V AC/60 Hz 9 mA @ 240V AC/50 Hz 11 mA @ 240V AC/60 Hz |
| On-state current, max | 15 mA @ 264V AC |
| Off-state current, max | 2 mA |
| Input impedance, nom |
24 kΩ @ 120V AC/50 Hz 20 kΩ @ 120V AC/60 Hz 27 kΩ @ 240V AC/50 Hz 22 kΩ @ 240V AC/60 Hz |
| Input impedance, min | 17.6 kΩ @ 264V AC/63 Hz |
| Inrush current, max | 600 mA |
| Input delay time | |
| Off to On | 10 ms (typ) @ 0...60 °C (32...140 °F) |
| On to Off | 10 ms (typ) @ 0...60 °C (32...140 °F) |
Applications of 5069-IA16
The Rockwell ControlLogix is a revolutionary industrial control system that provides advanced motion and process control capabilities.
With its high speed processor, up to 256 I/O, and communication ports such as Ethernet, Serial, and USB, Rockwell ControlLogix is designed to meet the requirements of the most complex industrial control applications.
The Allen-Bradley 5069-IA16 is a Rockwell ControlLogix System consisting of an ARM Cortex-A9 processor and an I/O system with a total size of 200mm X 200mm X 100mm.
With its industrial grade processor running at 1.5GHz, it provides the highest level of performance for machine control applications.
The Allen-Bradley 5069-IA16 is an ideal solution for Rockwell Industrial Systems and Automation Technology, providing customers with industrial-grade control for their machines and processes.
Packing and Shipping of 5069-IA16
Rockwell Controllogix packaging and shipping:
The product should be packaged in its original box, and the box should be sealed with tape.
If shipping by air, the box should be surrounded by a foam shell to provide additional cushioning.
If shipping by ground, the box should be surrounded by a cushioning material such as bubble wrap or packing peanuts.
FAQ
Q1: What is the brand name of Rockwell Controllogix?
A1: The brand name of Rockwell Controllogix is Allen-Bradley.
Q2: What is the model number of Rockwell Controllogix?
A2: The model number of Rockwell Controllogix is 5069-IA16.
Q3: What is the minimum order quantity for Rockwell Controllogix?
A3: The minimum order quantity for Rockwell Controllogix is 1.
Our products are sold all over the world, you can rest assured.
