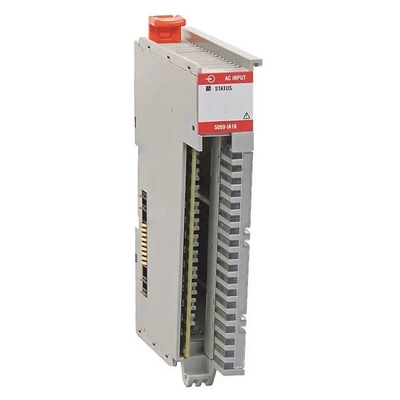

5069-IA16 Industrial Automation Controller With I/O 16 Channel 120/240V AC

5069-IA16 Industrial Automation Controller With I/O 16 Channel 120/240V AC

  • High Light

    5069-IA16 Industrial Automation Controller


    Industrial 240V AC Automation Controller

  • Type
    Digital I/O Processor SpeedModules
  • Number Of Inputs
    16 (One Group Of 16)
  • Input Voltage Range
    79...264V AC
  • Input Voltage Frequency
    47...63 Hz
  • Mod Power
    75 MA @ 18...32V DC
  • Mod Power Passthrough, Max(1)
    9.55 A @ 18...32V DC
  • Operating Temperature
    -20°C To +60°C
  • Power Supply
    24V DC
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    carton box
  • Delivery Time
  • Payment Terms
  • Supply Ability

5069-IA16 Industrial Automation Controller With I/O 16 Channel 120/240V AC

5069-IA16 Industrial Automation Controller With Compact I/O 16 Channel 120/240V AC


5069-IA16 Digital 16-point 120/240V AC Input Module


Product Description of 5069-IA16


AC digital input 5069-IA16 79...264V AC 16-point, input module

The 5069-IA16 module uses AC SA power. You must connect AC power to the component, that is, CompactLogix 5380 controller, adapter, or field potential distributor, that provides SA power to the module.


If you install a 5069-IA16 module as a local I/O module in aCompact GuardLogix 5380 controller system, you must install a field potential distributor that has AC power that is connected to it and install the 5069-IA16 module next to the field potential distributor.


You can’t install modules that draw AC SA power next to a Compact GuardLogix 5380 controller. Compact GuardLogix 5380 controllers do not support AC power on their SA power RTBs.


The Rockwell Controllogix Control System is an ideal choice for any industrial application, providing users with a reliable and powerful control system. It is an excellent choice for any industrial application.

Technical Parameters of 5069-IA16


Attribute 5069-IA16
Voltage category 120/240V AC
Number of inputs 16 (One group of 16)
Voltage and current ratings
Input voltage range 79...264V AC
Input voltage frequency 47...63 Hz
Mod power 75 mA @ 18...32V DC
Mod power Passthrough, max(1) 9.55 A @ 18...32V DC
SA Power 240 mA @ 79...264V AC
SA Power Passthrough, max(2) 9.975 A @ 79...264V AC
Do not exceed 10 A MOD or SA power (Passthrough) current draw.The 5069-IA16 module complies to ATEX/IECEx when used at or below 125V AC.
Power dissipation, max 3.5 W
Thermal dissipation, max 11.9 BTU/h
Isolation voltage 250V (continuous), Basic Insulation TypeType tested at 1800V AC for 60 sNo isolation between individual channels


Support and Services of of 5069-IA16


Rockwell Controllogix provides technical support and service to help ensure its customers get the most out of their products. The company offers a variety of services, including phone and online support, training and certification courses, and consulting services. Technical support and service is available for a variety of products, including hardware, software, and network solutions. Customers can also access product manuals and tech support resources online. In addition, Rockwell Controllogix offers a wide range of product warranties, including hardware, software, and total system coverage.


Packing and Shipping of of 5069-IA16


Rockwell Controllogix packaging and shipping:

The product should be packaged in its original box, and the box should be sealed with tape.

If shipping by air, the box should be surrounded by a foam shell to provide additional cushioning.



Q1: What is the brand name of Rockwell Controllogix?
A1: The brand name of Rockwell Controllogix is Allen-Bradley.


Q2: What is the model number of Rockwell Controllogix?
A2: The model number of Rockwell Controllogix is 5069-IA16.


Q3: What is the minimum order quantity for Rockwell Controllogix?
A3: The minimum order quantity for Rockwell Controllogix is 1.


Q4: What is the packaging details for Rockwell Controllogix?
A4: The packaging details for Rockwell Controllogix is carton box.


Q5: What is the delivery time for Rockwell Controllogix?
A5: The delivery time for Rockwell Controllogix is 3-4days.
