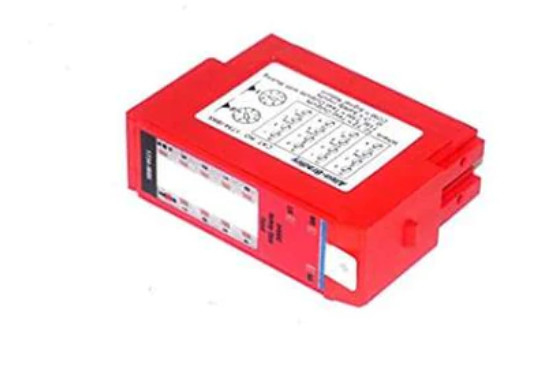

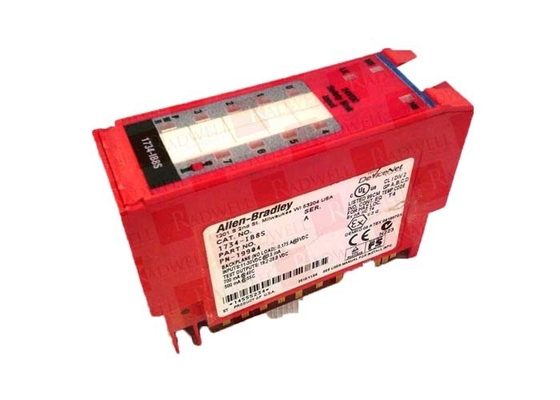

1734-IB8SK AB 8 8 Safety Digital Input, SIL 3, Ple, 24VDC, conformal coated

POINT Guard I/O Safety Module - 8 Point Input Module (Compatible with terminal bases with 8 terminations) - Conformal Coated

Product Details of 1734-IB8SK

Specifications of 1734-IB8SK

Input Delay Time, On to Off: 16.2 ms max;
On-State Current Min/Max: 3.3 mA/5 mA;
Maximum Off-State Current: 1.3 mA;
PointBus Current: 175 mA;
Maximum Power Dissipation: 1.4 W;
Terminal Base Units: 1734-TB, 1734-TOP, 1734-TOP3.
The 1734-IB8S Safety-Rated 8 input sink input module installs in mounting bases that mount on a DIN rail. All wiring is made to a removable terminal block mounted on the mounting base, Conformally Coated.

Topic Page
Safe States 21
Safety Inputs (1734-IB8S) 22
Safety Analog Inputs (1734-IE4S) 29
Safety Outputs (1734-OB8S and 1734-OBV2S) 37
Muting Lamp Operation (1734-IB8S) 40
I/O Status Data 41
ATTENTION:
• The safe state of the outputs is defined as the off state.
• The safe state of the module and its data is defined as the off state.
• Use the POINT Guard I/O™ module only in applications where the off state is the
safe state.
Output OFF Input
Inputs to Network OFFNetworks
Safety
Status
44076
