| Accessory and Replacement Products | |
|---|---|
| Connection Hardware | Common Terminal Module. Single-slot 12 mm wide Common Terminal Modules |

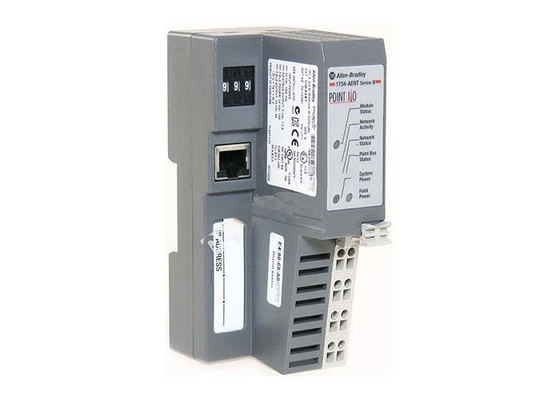

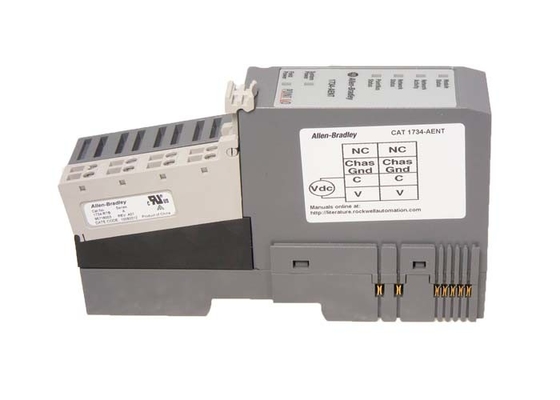

Specifications of 1734-AENT
| Manufacturer | Rockwell Automation |
| Starting Current | 6 Amps |
| Module type | Ethernet Network Adapter Module |
| Part Number / Catalog No. | 1734-AENT |
| Product Line | 1734 POINT I/O |
| Product Type | Communication |
| Port number | 1 |
| I/O module capacity | 63 modules |
| I/O point | max 504 |
| Communication speed | 10/100 Mbits/s half-duplex or full-duplex. |
| Power Consumption | 10.4 W @ 28.8V DC |
| Power Dissipation | 5.2 Watts (at 28.8 Volts) |
| Rated Input Voltage | 24 Volts DC |
| Dimensions | 30 x 2.16 x 5.25 inches |
| Ethernet connector | RJ-45 Type 5 |
| Isolation voltage | 50 Volts (Continuous) |
| Maximum I/O scalability | 63 modules, 31 direct connections |
Description of 1734-AENT
Common Terminal Module. Single-slot 12 mm wide Common Terminal Modules
