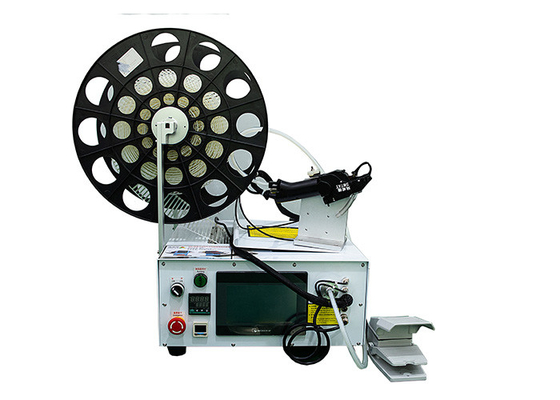

Light Weight 1.0S Bind Speed Automatic Cable Tie Reel For Wire Harness Manage

Light Weight 1.0S Bind Speed Automatic Cable Tie Reel For Wire Harness Manage

  • High Light

    Lightweight Automatic Bind Cable Tie Reel

    ,

    1.0 S Bind Speed Cable Tie Reel

    ,

    L100mm Automatic Cable Tie Reel

  • Name
    Automatic Cable Tie System
  • Application
    Binding Cable Wires,plastic Bags,tubes
  • Using Cable Ties
    W2.5 * L100mm
  • Max Binding Dia. For Wire
    Ø18 Mm
  • Power
    AC220V 50/60Hz
  • Pneumatic Pressure
    5kg/cm²
  • Bundle Speed
    1.1S
  • Bundle Capacity
    1800-2400pcs In A Hour
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT2510HC(with the support)
  • Minimum Order Quantity
    1pcs
  • Price
    negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Light Weight 1.0S Bind Speed Automatic Cable Tie Reel For Wire Harness Manage

Light Weight 1.0S Bind Speed Automatic Cable Tie Reel For Wire Harness Manage



If your factory uses the reel cable ties, it is suitable for you to choose swift automatic cable tie tool and these strip cable ties. Swift reel cable ties can be also used in Hellertyton automatic cable tie guns.



SWT25100FC nylon cable tie machine features



1. Using 1.1s to feed, wrap, cut off and collect the waste.

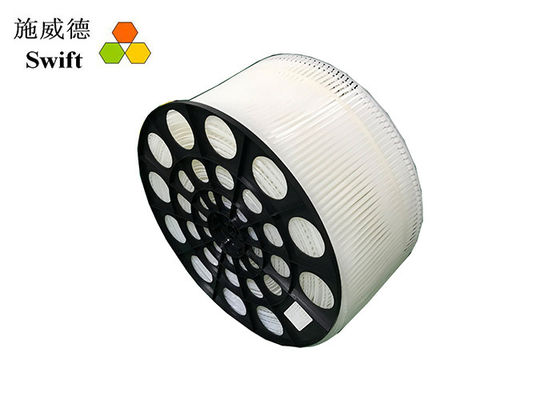

2. Using the reel cable ties. If run out of cable ties, pls load another one. There are 5000pcs zip ties in one roll.



3 . The whole machine is smaller than the handheld automatic cable tie machine eg SWT25100H that uses loose cable ties.



5 . There is no wheel. The host machine weight is light, about 30kg. It is easy to move.



6 . Electrical power is AC220V 50/60Hz.



7 . Using air source. The pneumatic pressure is 5kg/cm2



Automatic cable tie system technical parameter



SWT25100HC - automatic cable tie tool (It can be hold or fixed in the desktop)
Size Of cable size W2.5 * L100mm Voltage AC220V,50/60Hz
Operation speed 1.1S/cable tie The gun V. DC48V(auto switch)
Max banding Dia. for wire Ø18mm Power 1000W
Max banding Dia. for tube Ø16mm Pneumatic pressure 5kg/cm²
Min banding Dia. Ø3mm Certificate CE, RoHS
The bending force Available The tensile strength of SWIFT cable ties 8kg



Automatic cable tie tool - the handheld type

Model SWT25100HC SWT36150HC SWT36200HC
Operation speed 1.0S/cable tie 1.2S/cable tie 1.3S/cable tie
Max banding Dia. for wire Ø18mm ø31mm ø42mm
Max banding Dia. for tube Ø16mm ø30mm ø40mm
Min banding Dia. Ø3mm Ø3mm ø20mm
The bending force Available
The tensile strength of SWIFT cable ties 8kg 14kg 15kg
Voltage The host: AC220V,50/60Hz; the gun: DC24V(auto switch)



Swift advantages



We are manufacturer and we have more than 16 years' experience in automation industry.



We can offer you the best price and good quality machine.



We often attend the fair home and abroad and can offer our professional suggestions to our customers.



Our patents

Light Weight 1.0S Bind Speed Automatic Cable Tie Reel For Wire Harness Manage 0



Productronica China in Shanghai 2016



Light Weight 1.0S Bind Speed Automatic Cable Tie Reel For Wire Harness Manage 1



FAQ



1 . Are you a manufacturer?

     Yes, we are. There are two main business, including nylon cable tie tool and nylon zip ties.



2 . Do you provide design services?

     Yes, we offer the design services related to nylon cable ties & tools.



3 . What's the lead time of the auto cable tie tools?

     The lead time is 10-15 working days after confirm your details and payment.
