20N 0.8S Automatic Wire Tie Machine Tying Simple Cable Harness

20N 0.8S Automatic Wire Tie Machine Tying Simple Cable Harness

  • High Light

    0.8S Automatic Wire Tie Machine

    ,

    20N Automatic Wire Tie Machine

    ,

    80N Automatic Wire Tie Machine

  • Name
    Nylon Cable Tie Machine For Bundle
  • Cable Ties Size
    W2.5 * L100mm * T1.1mm, T25100
  • Bundle Productivity
    2400-3,200pcs/h
  • Bundle Speed
    0.8S Per Nylon Cable Tie
  • Bundle Dia.
    2mm - 16mm
  • Pneumatic Pressure
    3kg/cm²
  • Power
    1,000W
  • Voltage
    AC220V - AC240V,50/60Hz
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SWIFT
  • Certification
    CE and RoHS
  • Model Number
    SWT25100D
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    12 - 15days
  • Payment Terms
    100% T/T payment
  • Supply Ability
    100pcs/month

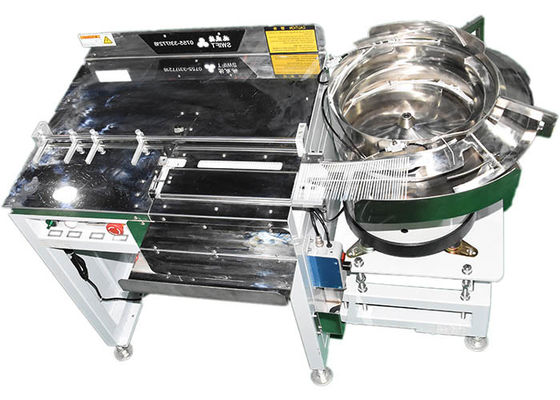

20N 0.8S Automatic Wire Tie Machine Tying Simple Cable Harness

20N 0.8S Automatic Wire Tie Machine Tying Simple Cable Harness



Nylon cable tie installation machine can bind nylon zip ties in fast and stable speed. It takes 0.8S to bundle a cable tie. A cable tie gun can save 2 workers even more.



Description of nylon zip tie gun



1. Handler needs to put nylon cable ties into the vibration bowl. Zip ties would be sorted and relined.



2. When worker treads foot pedal, nylon tie wraps would be transferred into the position of the jaws, then tied, tighten and cut.



3. The binding force is controlled by mechanical device. It is more stable and accurate.



4. The nylon cable tie machine (Desktop type) can tighten harness with PVC sleeve, no need to pre-heating in advance.



5. The bundle force is adjustable by turning a knob.



Information of automatic cable tie machine



Model SWT25100D
Cable tie gun Without cable tie gun alone.
Batteries included No
Batteries required No
Applicable cable tie model T25100
Applicable cable tie width 2.5mm
Applicable cable tie length 100mm
Applicable cable tie head L4.8 * W4.8 * H3.8mm
Bundle diameter 2 - 16mm
Bundle forces 20N - 80N, adjustable
Bundle speed 0.8S/cable tie
Bundle productivity 2400pcs/h, including the time of picking and placing products
Size of nylon cable tie machine L1040*W640*H750mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²



Advantages of automatic cable tie gun



1. Our factory has more than 8 year experience in this industry of automatic cable tie machines. And we only develop this kind of cable tie machines.





2. We have more than 50patents and protect our technology strictly.



3. Cut incision is smooth.



4. The binding forces are adjusted by PE engineer.



20N 0.8S Automatic Wire Tie Machine Tying Simple Cable Harness 0



Applications



1. Wire harness: simple cable harness



2. Straight soft tubes with/without PVC sleeve



3. Cable harness in elevator



Trade terms



Sea port Huizhou, Shenzhen, Guangzhou
Payment 100% TT before shipment
Lead time 10-15working days
Packing Wooden case
Warranty 1 year and tech support forever



Packing details



Automatic cable tie machine will be packed in wooden case.



Packing size: 118*100*58cm; N.W.: 148kg; G.W.: 167kg



FAQ



1. Can I use other brand cable ties in this cable tie machine?



No, the cable tie machine can only deal with one kind of nylon cable ties T25100.



2. What are the requirements for bundle products?



The cable tie machine can bundle wire harness/tubes whose diameter can be up to 16mm/14mm. It can’t bundle bigger objects.
