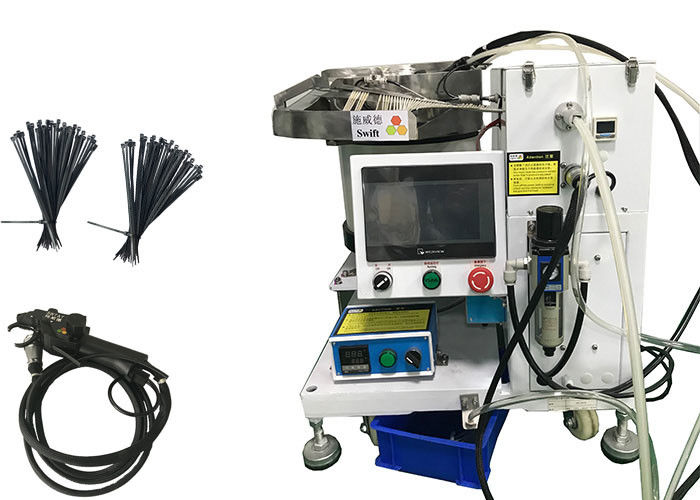

Vibration Feeding Automatic 1000W Nylon Cable Tie Machine
Automatic cable tie machine has an electric cable tie gun. Nylon cable ties would be transferred into the cable tie gun. When Operator pulls the trigger, cable ties would be bundled in 1S. It can bundle 3,000pcs cable ties per hour.
Technical parameters of automatic cable tie machine
| Model | SWT25080H | Function | Auto bundle nylon ties fast |
| Applicant nylon zip ties |
Width 2.5mm | Applicant products’ size |
Max bundle diameter for wire harness: 14mm |
| Length 80mm | Max bundle diameter for tubes: 13mm | ||
| Thickness 1.1mm | Min bundle diameter:2mm | ||
| Bundle speed | 0.7S per cable tie | Bundle tension force | Adjutable, max 80N |
| Bundle productivity | 3,000pcs/h | Power | 1,000W |
| Gross weight | 140kg | Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm² | Size | L670 * W660 * H670 |
Functions of automatic cable tie gun
1. Using nylon bulk zip ties T25080, vibration feeding, auto bundling.
2. There is a handheld cable tie bundle gun. Operator can bundle objects with nylon ties by different angles.
3. Touch the trigger, the cable tie gun would start to bind objects.
4. The binding forces are adjustable. Turn a knob to do it.
5. Diameters of objects bundled: 2mm -14mm
6. PLC control system and touch screen, easy to manage parameters.
7. Ergonomic hand shank design, comfortable to hold and operate.
Scope of application of automatic tie wrap machine
| Applicant cable ties | Nylon cable ties; size: width2.5mm * length80mm * thickness 1.1mm; model T25080 |
| Applicant products | Ask to tie nylon cable ties in products, wire harness, food bags, silicone connectors etc. |
| Industry | Wire harness, food, medical, hardware etc. |
Packing List of automatic cable tie machine
| The host machine for SWT25100H | *1 |
| The vibration bowl for SWT25100H | *1 |
| The handheld cable tie gun for SWT25100H | *1 |
| The tool kit | *1 |
| The English manual | *1 |
About packing
1. Auto cable tie machine would be packed in wooden cases.
2. Nylon cable ties would be packed in carton boxes.
| Item | Quantity | Packing size | G.W./kg |
| Host machine | 1 | 74*69*86cm | 96kg |
| Vibration bowl | 1 | 54*49*51cm | 66kg |
| Nylon cable ties of T25080 | 60,000pcs | 54*36*29cm | 14kg |
About delivery
1. Lead time: 10-12days
2. Could be shipped by air, by sea.
FAQ
1. How could I adjust the binding forces?
Pls turn a knob to adjust it. Near the knob, there is a small window to see the numbers. Bigger values, stronger forces.
2. Does it produce nylon cable ties?
No, it doesn’t. The machine is used to bundle nylon ties.
3. Do you have service centers in other countries?
No, we don’t. Our clients are from all over the world. If have any problems, pls send videos to us and we would help you solve them.
Our products are sold all over the world, you can rest assured.
