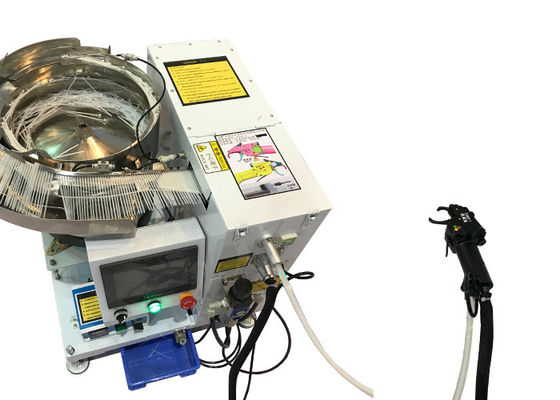

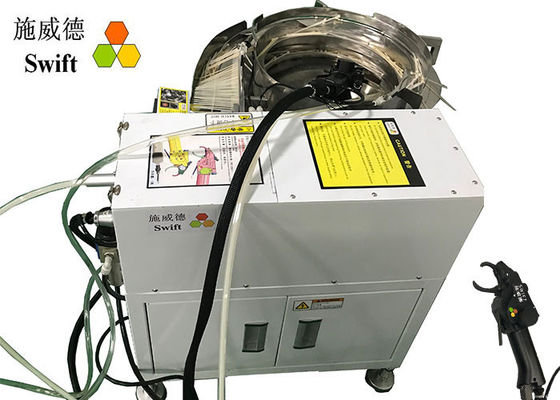

Electric Power Handheld Gun 0.8S Nylon Cable Tie Machine

Electric Power Handheld Gun 0.8S Nylon Cable Tie Machine



Automatically wrapping, pulling and tightening, cutting nylon cable tie within 0.8S.



Basic use of nylon cable tie machine



Be suitable for bundling nylon cable ties automatically, such as wire harness using nylon cable ties, bags sealed with nylon ties so on.



Scope of application of automatic cable tie machine



Applicant cable ties	Nylon cable ties; size: width2.5mm * length120mm * thickness 1.1mm; model T25120
Applicant products	Ask to tie nylon cable ties in products, wire harness, food bags, silicone connectors etc.
Industry	Wire harness, food, medical, hardware etc.
Applications	Harness in the board; medical silicone tubes and connectors; food bags etc.



Example of bundling



Auto bundle wire harness with nylon ties	Auto bundle silicone tubes	Auto wire cable of motor coils



Working process of automatic cable tie gun





Technical parameters of handheld cable tie gun machine



Model	SWT25120H	Function	Auto bundle nylon ties
Applicant nylon zip ties	Width 2.5mm	Applicant products’ size	Max bundle diameter for wire harness: 22mm
	Length 120mm		Max bundle diameter for tubes: 21mm
	Thickness 1.1mm		Min bundle diameter:2mm
Bundle speed	0.8S per cable tie	Power	1,000W
Gross weight	160kg	Voltage	AC220V, 50/60Hz
Pneumatic pressure	5kg/cm²	Size	L670 * W660 * H670
Bundle productivity	2000-3000pcs/h	Bundle tension force	Max 80N, adjustable



Features of automatic cable tie machine



1. Once touch the trigger, cable tie would be automatically wrapped, tightened and cut off.



2. The operation speed: 0.8S



3. The binding forces are adjustable.



4. One machine can save 4 workers.



5. The waste would be collected into a box.



6. Automatic detecting fail: the machine would stop working if nylon zip ties were jammed in the host or the gun.



7. Could be as fixed with a small support and could be applied to full-automation.





About delivery



1. Machine lead time: 10working days after receive payment.



2. Could be shipped by air, FedEX etc.



3. Could be shipped by sea.



About packing



1. The host machine and cable tie gun would be packed in a wooden case.



2. The vibration bowl would be packed in a wooden case.



3. Wooden is polywood and can shipped by sea or air.



FAQ



1. Could you pls inform packig sizes?



Yes, we could give you the estimated packing sizes if urgent. The correct sizes will be sent after packing. Both are close.



2. Do you have service centers in other countries?



No, we haven't had yet.



3. Can we adjust the bundle forces?



Yes, you can  and the max force is 80N.
