1000W 0.8S Automatic Cable Tie Machine For Temperature Sensor

name

1000W 0.8S Automatic Cable Tie Machine For Temperature Sensor

Brand Name:	Swift
Model Number:	SWT25100D
MOQ:	1pcs
Price:	negotiation
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Model:

SWT25100D

Cable Ties Spec.:

W2.5 * L100mm

Bundle Diameters:

2mm - 14mm

Electrical Power:

AC 220V 50/60 Hz; Euro Plug

Desktop Type Cable Tie Tesioning Tool:

3kg/cm2

Bundle Speed:

0.8 Second

Certificate:

CE

Binding Forces:

Adjustable

Function:

Fast And Easy Locking Nylon Cable Ties

Application:

Simple Wire Harness, Sensors

Packaging Details:

wooden case

Supply Ability:

100pcs/month

Highlight:

0.8S Nylon Tie Tool

,

1000W Cable Tie Machine

Product Description

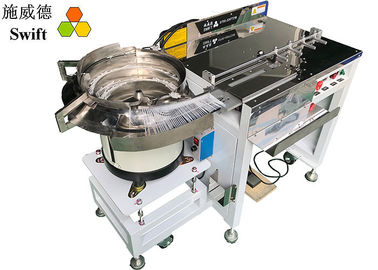

Fast Easy Automatic Cable Tie Machine For Bundle Threaded Temperature Sensor

Technique data

Model	SWT25100D
Cable ties size	W2.5 * L100mm
Min bundle diameter	2mm
Max bundle diameter for tube	14mm
Max bundle diameter for wire	16mm
Operation speed	0.8S per setting
Host weight	120kg
Power	1,000W
Voltage	AC220V, single phase, 50/60Hz
Pneumatic pressure	3kg/cm²
Certificate	CE, RoHS

Features

1. Place loose cable ties into vibration bowl, they would be sent to the position of jaws.

2. The binding forces adjusted by PE engineer.

3. There is no dependent handheld cable tie gun or fixed cable tie gun. The machine structure is simple.

4. Operatory treads foot pedal to make the machine bundling wire harness or other items.

5. The excess waste material would be collected into a box.

6. Only bundle simple items, such as simple wire harness, relatively straight casing or hose.

7. Voltage: AC220V, 50/60Hz; Pneumatic pressure: 3kg/cm²

Package list

Item	Qty
Host machine	*1
Vibration bowl	*1
A plastic box	*1
English manual	*1
Small tool case	*1
Foot pedal	*1

Similar automatic cable tie machine

Model	SWT25080D
Cable ties size	W2.5 * L80mm
Min bundle diameter	2mm
Max bundle diameter for tube	10mm
Max bundle diameter for wire	12mm
Operation speed	0.8S per setting
Host weight	120kg
Power	1,000W
Voltage	AC220V, 50/60Hz
Pneumatic pressure	3kg/cm²
Certificate	CE, RoHS

1000W 0.8S Automatic Cable Tie Machine For Temperature Sensor 0

Model	SWT25100H
Cable ties size	W2.5 * L100mm
Min bundle diameter	2mm
Max bundle diameter for tube	16mm
Max bundle diameter for wire	18mm
Operation speed	0.7S per setting
Cable tie gun	Hanheld type
Power	1,000W
Voltage	AC220V, 50/60Hz
Pneumatic pressure	5kg/cm²
Certificate	CE, RoHS

FAQ

1. Is it easy to move the machine?

Yes, there are wheels to move it.

2. Is it ok to place too many cable ties in vibration bowl?

It is better to place 300pcs per time. Or the loading speed of vibration bowl gets slowly.

3. What certificates do you have?

CE, RoHS, REACH.

4. How do you pack the machines?

They would be packed in wooden cases. It is no problem to ship them by sea or express.
