80mm Length Nylon Cable Tie Machine Installation Tool Gun Different Plugs AC 220V
-
High Light
binding wire tying machine
,cable bundling machine
-
Product NameCable Tie Installation Tool
-
ModelSWT25080F
-
Cable TiesT25080
-
Width2.5mm
-
Length80mm
-
Bundling Dia.2mm - 10mm
-
Bundle Speed0.9S
-
VoltageAC220V,50/60Hz, Different Plugs
-
Place of OriginChina
-
Brand NameSWIFT
-
CertificationCE and RoHS
-
Model NumberSWT25080F
-
Minimum Order Quantity1pcs
-
PriceNegotiation
-
Packaging Detailswooden cases
-
Delivery Time10 - 15days
-
Payment Terms100% T/T before ship
-
Supply Ability100pcs/month
80mm Length Nylon Cable Tie Machine Installation Tool Gun Different Plugs AC 220V
Cable Tie Installation Tool Nylon Zip Tie Gun For Cable Ties 80mm Length
Fastening nylon cable ties width 2.5mm, length 80mm - Automati cable tie gun.
Cable tie installation tool features
1. Power supply: AC220V/AC110V, 50/60Hz; Tool head output: DC24V, Max. power1KW.
2. Bundling speed: 0.9S.
3. Tool head can adapt different diameter objects and bundle automatically.
4. The binding forces adjustable(2kg, 3.5kg, 5kg, 6.5kg, 8kg).
5. Fixed cable tie gun. Once tread the foot pedal, the machine would start to work.
6. Using nylon cable ties T25080.
.
Certification and Approvals
CE and RoHS

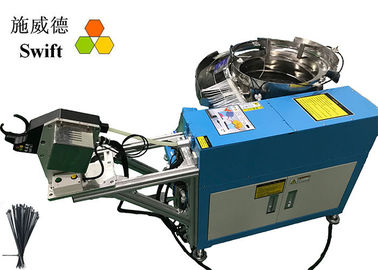

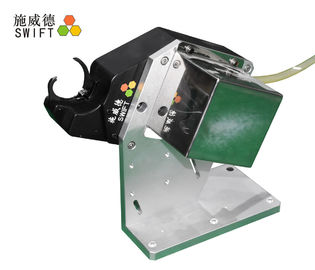

Automatic cable tie installation tool SWT25080F
| Name | Automatic cable tie tool SWT25080F |
| Description |
How to tie single cable tie in fast way: Automatically bundle, thread, tighten and cut off nylon cable ties until the products tightened tightly. |
| Cable ties model | T25080 |
| Cable ties material | Nylon 6.6 |
| Width | 2.5mm |
| Length | 80mm |
| Quantity/bag | 1,000pcs/bag |
| Usage/per time in vibration bowl | 200pcs – 300pcs is enough |
| Bundling Max Dia. for wire | Ø10.0mm |
| Bundling Max Dia. for tube | Ø8.0mm |
| Bundling Max Dia. | Ø2.0mm |
| Bundling speed | 0.9/cable tie |
| Operation | Electrical |
| Power supply | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm2 |
| Max power | 1,000W |
Packing details
The machine would be packed in two wooden cases.
Trade terms
1. 100%TT available.
2. Delivery date: 10- 15days.
3. Price: FOB Shenzhen, EXW-price, CIF etc.
4. Transportation: by sea, by air, by fedex or others.
Applications
The autotool system SWT2080F is a machine that could help human to speed up the bundling processes.
It could bundle different diameters objects automatically and cut off the tails of cable ties.
Our products are sold all over the world, you can rest assured.
