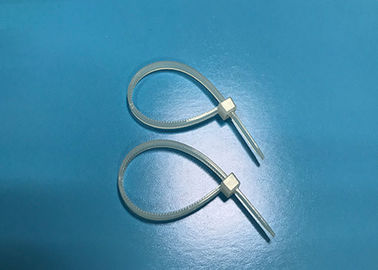

80mm Length 18 lbs Tensile Strength Zip Ties Belt For Bundling Wire Harness
The cable ties are with 18lbs tensile strength, its width is 2.5mm and its length is 80mm. They are good insulation and not easy aging. Bundling max-diameter of wire harness is 10mm.
Cable tie 2.5 * 80mm specifications
| No. | Item | Description | Value |
| 1 | Loose cable tie | T25080 | No |
| 2 | Size Of cable size | Width | 2.5mm/0.098inch |
| Length | 80mm/3.15inch | ||
| Thicker | 1.1mm/0.043inch | ||
| 3 |
Head size
|
Length | 4.6mm |
| Width | 4.6mm | ||
| Height | 3.7mm | ||
| 5 | Tensile strength | 8kg/18lbs | |
| 6 | Per package | 1,000pcs | |
| 7 | Per carton | 50,000pcs | |
| 8 | Flame retardant grade | UL94V-2 | |
| 9 | Certificate | Reach, RoHS | |
| 10 | MOQ | 10,000pcs | |
| 11 | Material | PA66 U4820L | |
Product details
1 . Color : Natural/Blue/Red/Yellow
2 . Standard operation temperature: - 30℃ - +80℃.
3 . The tensile strength: 18lbs/8kgf
4 . Cable ties are no flash, no burr and no bending. It is straight and nice.
5 . The cable ties are produced under ISO9001; 2015 and have passed Reach/RoHS.
Applications
All kinds of items that you want to use zip ties belt to fix, for example, wire harness inside fans/motors air conditions/washing cleaners.
Our company has invented a patent product that it could automatically thread, tighten and cut off cable ties. It would help you save about 5 workers' cost. Its bundling speed is 0.6S. Pls contact our sales team to get more details(Model SWT25080H).
There are other sizes for your choice.
| Loose cable ties | Model | Width | Length | Bundling Diameter | Tensile strength |
| T25080 | 2.5mm | 80mm | 0 - 10 mm | 8kg | |
| T25100 | 2.5mm | 100mm | 0 - 18mm | 8kg | |
| T25120 | 2.5mm | 120mm | 0 - 22mm | 8kg | |
| T36100 | 3.6mm | 100mm | 0 - 18mm | 12kg | |
| T36120 | 3.6mm | 120mm | 0 - 22mm | 14kg | |
| T36150 | 3.6mm | 150mm | 0 - 31mm | 14kg |
Trading terms
Payment: 100% TT before ship.
Price: EXW
Shipping way: By air, TNT, DHL, EMS.
Our services cover all industries and reach all parts of the world.
