Self Locking Flexible Strip Cable Ties For Automatic Cable Tie Tool Application

Self Locking Flexible Strip Cable Ties For Automatic Cable Tie Tool Application

  • High Light

    plastic tie straps

    ,

    pa66 cable tie

  • Product Name
    Strip Cable Ties
  • Model
    C36200
  • Tie Width
    3.6mm
  • Tie Length
    200mm
  • Tie Thick
    1.2mm
  • Bundling Diameter
    20mm - 42mm
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SWIFT
  • Certification
    REACH, RoHS
  • Model Number
    C36200
  • Minimum Order Quantity
    4,000pcs
  • Price
    Negotiation
  • Packaging Details
    4,000pcs/carton box
  • Delivery Time
    3 working days once confirm payment
  • Payment Terms
    T/T available
  • Supply Ability
    10,000,000pcs/month

Self Locking Flexible Strip Cable Ties For Automatic Cable Tie Tool Application

Self Locking Flexible Strip Cable Ties For Automatic Cable Tie Tool Application

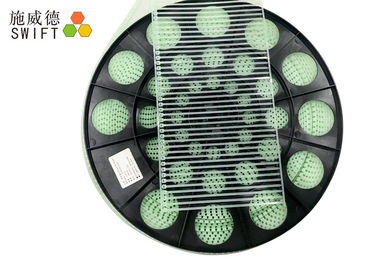

C36200 strip cable ties, 4,000pcs/reel is 3.6mm width and 200mm length. The tensile strength is 15kg, 33lb. The max bundling diameter is 42mm. The material is high quality PA 66 imported.



C36200 base data



Product attribute Attribute value
Manufacturer Swift Automation Technology CO.,LTD
Product catalog Cable ties
RoHS Yes
Product Cable ties have been formed and laced in reel.
Type Strip cable ties
Model C36200
Length - in 200mm / 8in
Width - in 3.6mm / 0.14in
Max bundling Diameter for wire - in 42mm / 1.65in
Max bundling Diameter for tube - in 40mm / 1.57in
Tensile strength 33lbs/15kg
Material Nylon PA66 U4820L
Series 36series
HTS code 3926909090(China); 3926909790(TRAIC)
Compliance Reach, UL, CE
Factory pack quantity 4,000pcs/reel
Unit weight 0.8776g



Features



1. One-piece construction for consistent performance and reliability.



2. Lowest threading force of any one-piece cable tie in the industry.



3. Inside serrated cable ties for a strong hold onto bundles



4.Straight tip is easy to use in automatic cable tie tool.



Application



Be fitted to SWT36200HC, automatic cable tie tool.
