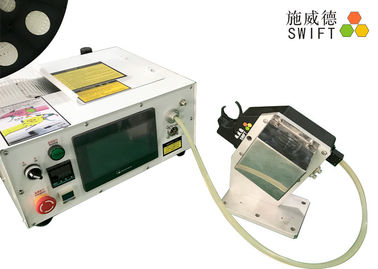

Automatic Cable Tie Machine SWT36150FC Waste-free Bundling In Fast Speed
SWT36150FC auto cable tie gun is a machine that could bundle different diameters of goods with reel cable ties. The operation speed is 1.2S.
SWT36150FC advantages

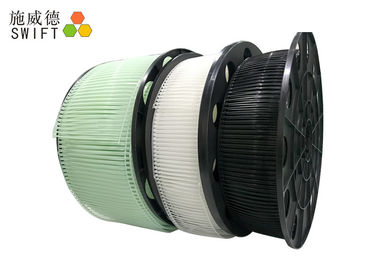

1 . Use 4,000pcs cable ties in a reel.
2 . Binding forces adjustable.
3 . Tread the pedal, automatically wrapping, threading, pulling and tightening, cutting off.
4 . If there is cable tie bundled not successfully, it could detect and deal with by itself. If there is cable tie jammed in the hose, it could detect and clean the jammed cable tie. Other brand machines are without these functions.
SWT36150FC parameters
The host machine for SWT36150FC | ||
Model | SWT36150FC | |
F | F means the fixed bench type tool head | |
C | C means reel cable ties, 4,000pcs in a reel | |
Host size | Length | 710mm |
Width | 470mm | |
Height | 230mm | |
Host weight | 30kg | |
Temperature | 40℃ suggest | |
Host power supply | AC220V, 50 Hz / 60Hz (AC110V, 50 Hz / 60Hz available) | |
Power | 1,000W | |
Pneumatic pressure | 5kg / cm² |
Cable tie gun of SWT36150FC | |
Using cable tie | Width 3.6mm * Length 150mm |
The head size of cable tie | Length 6.3mm * Width 6.0mm * Height4.6mm |
Bundling Max Dia. for wire | Ø 31.0mm |
Bundling Max Dia. for tube | ø 30.0mm |
Bundling Min Dia. | Ø 2.0mm |
Gun tool size | L291 * W240 * H149mm |
Gun weight | 4.0kg |
Gun tool power supply | DC48V ( switch auto ) |
How to operate cable tie machine?
The inspection before using.
1 . Check the vibration bowl situations, such as the the electric power and the pneumatic tube.
2 . Check the tool head if it has been connected to the host machine correctly.
3 . Check if the 4 foot cups should be adjusted to touch the ground and the wheel should be away from the ground.
How to use?
Because our engineer has set all the parameters, you could directly use it like this - power on, select “AUTO” then tread the pedal.
FAQ
1 . What is the difference compared with other brand machines?
SWIFT cable tie machine SWT36150FC is fixed in the bench. It has many multi-functions(auto detect jam and auto detect failure). It works stable and reliable. Many customers spoke highly of our machines.
2 . What is MOQ?
1pcs SWT36150FC.
3 . Could you offer samples?
We could offer the cable tie sample.
4 . Do I need to adjust the tool head when to bundle different diameters objects?
No, you don’t. It would bind them automatically without any adjustment.
Other products
Auto cable tie machines use strip cable ties – fixed type | ||||
Model | SWT25100FC | SWT36200FC | ||
Cable tie type | Reel cable ties | |||
Qty / reel | 5,000pcs | 4,000pcs | ||
Cable tie specifications | Width | 2.5mm | Width | 3.6mm |
Length | 100mm | Length | 200mm | |
Head size of cable tie | L4.8 * W5.0 * H3.7mm | L6.7 * W6.6 * H4.6mm | ||
Gun head size | L278 * W240 * H149mm | L299 * W240 * H149mm | ||
Host machine size | L470 * W230 * H710mm ( including the height of the reel ) | |||
Power supply | AC220V, 50 / 60Hz, plugs available |
