SWT36200HC Nylon Cable Tie Machine 42mm Binding Max Dia With Automatic Cable Tie Gun
-
High Light
binding wire tying machine
,cable bundling machine
-
NameNylon Cable Tie Machine
-
ModelSWT36200HC
-
Cable Ties TypeReel Cable Ties
-
WidthW3.6mm
-
LengthL200mm
-
Tie ThickT1.2mm
-
Place of OriginChina
-
Brand NameSwift
-
CertificationCE and RoHS
-
Model NumberSWT36200HC
-
Minimum Order Quantity1pcs
-
PriceNegotiation
-
Packaging Detailswooden cases
-
Delivery Time10 - 15days
-
Payment TermsT/T
-
Supply Ability100pcs/month
SWT36200HC Nylon Cable Tie Machine 42mm Binding Max Dia With Automatic Cable Tie Gun

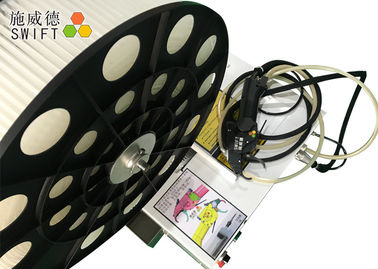

Automatic Cable Tie Guns SWT36200HC Automatically Bundling Up To ø 42mm
Automatic cable tie gun is different with the traditional cable tie guns. SWIFT cable tie gun can automatically bind objects with cable ties. You don’t need to take cable tie and tighten it. The machine would do the operations.
Why do you choose SWT36200HC?
1 . When you are using reel cable ties and its size is W3.6 * H200mm, SWT36200 is suitable for you.
2 . The automatic cable tie machine is with multi-functions. One of them is the detecting cable tie jam. It can detect if cable tie is jammed in the feeding hose and deal with cable tie automatically.
3 . Our cable tie gun machine is more stable than others. We are the supplier of 300 well-known enterprises in the world.
SWT36200HC advantages
1 . The binding Max Dia. is 42mm.
2 . The operation speed is 1.3S, including wrapping, pulling and tightening, cutting off cable ties and collecting the waste.
3 . The tensile force is adjustable, 2kg, 3.5kg,5kg, 6.5kg and 8kg available.

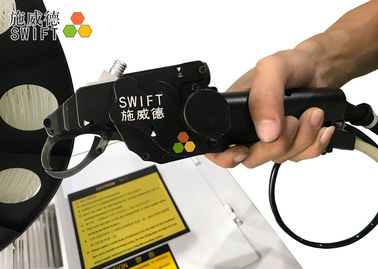

4 . Ergonomic hand shank design, it is comfortable to hold and operate.
5 . It could be fixed as bench top by adding a metal support. The standard machine is without the support.
SWT36200HC basic information
| Product name | Cable tie tool | Model | SWT36200FC | Using type | Handheld type |
| Zip tie type | Reel cable tie | Cable tie width | 3.6mm | Cable tie length | 200mm |
| Size of host machine | Length 710mm | Weight of host machine | 30kg | Material | Metal |
| Width 470mm | |||||
| Height 230mm | |||||
| Size of gun head | Length 274mm | Weight of gun head | 0.91kg | Certificate | CE, RoHS |
| Width 73 | |||||
| Height 74mm | |||||
| Power supply | AC220V, 50 / 60Hz, Australia plug | Power | 1000W | Pneumatic pressure | 5kg / cm² |
SWT36200HC technical specifications
| Bundling Max Dia. for wire / tube | Ø42mm / Ø 40mm | Bundling Min Dia. for wire and tube | Ø3mm |
| Operation speed | 1.3S / cable tie | Actual pneumatic pressure |
3 - 5 kg / cm² (the smaller,the better) |
| Temperature | 40℃ suggest | Qty of cable ties per time in vibration bowl |
Less 300pcs suggest |
Applications
Wiring Harness inside fans, air conditions, oven
Package
The machine would be packed in a wooden case. The packing size is L620 * W590 * H370mm.
SWIFT service
Before sales service
1 . Reply you in time according to your requirements and offer you professional suggestions.
2 . If you have any doubts on automatic cable tie machine, pls don’t hesitate to contact us.
3 . Offer the quotation.
After payment, we will arrange the production in time. The lead time is 10days if there are enough raw materials.
After sales service
1 . 1 year warranty
2 . Technical support in whole life
3 . Online training for free.
Trade terms
| Trade terms | |
| Payment term | 100% TT payment before shipment. |
| The lead time | 10 days or 15days begins from payment arrives in our bank account. |
| Ship ways | By sea, by air or others |
| Sea port | Shenzhen |
| Price | EXW, FOB,CIF |
Our products are sold all over the world, you can rest assured.
