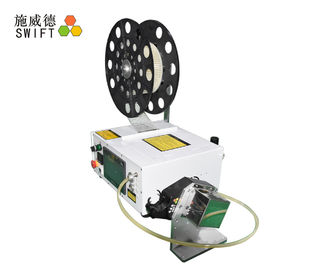

Bench Mount Cable Tie Machine Automatic Bundling Up To Diameter 18mm
Cable tie machine is mounted in the bench. Worker’s two hands are free because the machine is bundled by pressing the foot pedal.
Why do you choose SWT25100FC cable tie machine?
The machine uses the reel cable ties. There are 5,000pcs cable tie in reel. You don’t need frequently put cable ties into in the vibration bowl to feed. The cable tie equipment is smaller and the noise is lower.
1 . Automatically detect cable tie bundling successfully or fail.
2 . Automatically detect if cable tie jams in the gun or hose and handle it by its own.
3 . When in low temperature such as 15℃ or less, you set the temperature 40℃ to protect the tie toughness.
4 . The tensile force adjustable
SWT25100FC basic data
|Product name||Cable tie tool||Model||SWT25100FC||Using type||Bench type|
|Zip tie type||Reel zip tie||Zip tie width||2.5mm||Zip tie length||100mm|
|Size of host machine||L710 * W470 * H230mm||Weight of host machine||30kg||Material||Metal|
|Size of gun head||L278 * W240 * H149mm||Weight of gun head||4.0kg||Certificate||CE|
|Power supply||AC220V, 50 / 60Hz, Euro plug||Power||1000W||Pneumatic pressure||5kg / cm²|
SWT25100FC technical specifications
|Bundling Max Dia. for wire||Ø18mm||
Bundling Min Dia.
|Bundling Max Dia. for tube||Ø 16mm|
|Operation speed||0.9S per cable tie||Actual pneumatic pressure||
3 - 5 kg / cm²
|Temperature||40℃ suggest||Qty of cable ties per time in vibration bowl||
200pcs – 300pcs
The metal tube with sleeve
The harness with PVC sleeve
The plastic bags
Before sales service
1 . We will reply you in time based on your requirements and give you suggestions.
2 . We will tell you more details if you have any problems to automatic cable tie machine.
After payment, we will arrange the production in time. The machine will be checked and tested five days to ensure the quality.
After sales service
1 . We guarantee 1 year warranty and technical support in whole life.
2 . In China, we would offer the onsite guide and the training. In abroad, we would offer online guide.
|1 . Can I use different size of cable ties in one machine?||No, one machine only uses one kind of cable ties. SWT25100HC uses cable tie size W2.5 * H100mm.|
|2 . How many pieces cable ties in a reel?||4,000pcs to 5,000pcs.|
|3 . Do you accept customized machine?||Yes, we can customize one for you according to your requirements and charge some cost.|
|4 . If there are many different diameters of wiring harness, Can the cable tie machine bind them?||Yes it can bind the objects as long as the diameters are less than the max binding diameter.|
