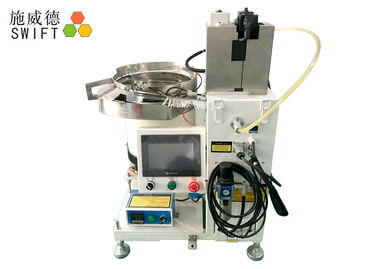

Automatic Bundling Nylon Cable Tie Machine For Lead Line of Motor Coil
Automatic cable tie system can be used to fix the lead line of motor coil. The available operation room is very small. So our company designed the professional automatic cable tie tool for bundling motor coil.
SWT25120M details
1. Using loose cable tie. The size is W2.5 * L120mm.
2. With a vibration bowl. It could distribute and rank cable ties one by one.

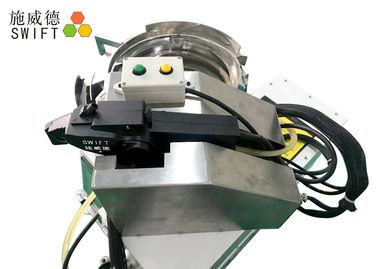

3. With a professional tool head for bundling motor coil.
4. With a touch screen and PLC control system.
5. With a pressure regulating filter
6. With a temperature control.
SWT25120M parameters
| Automatic cable tie machine– SWT25120M | |||||||
| Model | Cable tie size | Qty in vibration bowl | Operation speed | Bundling Dia. | Pneumatic pressure | Total Power | |
| SWT25120M | Width | 2.5mm | 300pcs | 1.2S | 11 - 15mm | 5kg/cm² | 1,000W |
| Length | 120mm | ||||||
| Tie thick | 1.1mm | ||||||
| Tensile strength | 8kg | ||||||
| Power supply | AC220V, 50/60Hz, Euro plug or others | ||||||
| Tool head power | DC48V (auto switch) | ||||||
Other data
| Automatic cable tie machine– SWT25120M for binding the lead line | ||
| The host machine | Weight/kg | 146kg |
| Size/cm | L72 * W71* H67cm without the reel | |
| The tool head | Weight/kg | 6kg |
| Size/cm | L33 * W28 * T19cm | |
| Total N.W. | 152KG | |
SWT25120M advantages
1. The tightening forces are adjustable by turning the knob.
2. Tread the pedal to bundle objects automatically. Operator can hold it with two hands.
3. The whole operations take 1.2s, not including the time of ranking cable ties.
4. It is easy to manage because of the touch screen, dual languages display.
5. Improving the bundling speed, one machine can save 1 – 2 workers.
Applications
Be suitable for motor coil and the objects which have small room for cable tis to go through.
Packing details
Two wooden cases.
| Packing details of SWT25120M automatic cable tie machine | ||
| The host machine / wooden case | Weight/kg | 160kg |
| Packing Size/cm | L84 * W83 * H80cm | |
| The vibration bowl / wooden case | Weight/kg | 90kg |
| Packing Size/cm | L80 * W70 * H108cm | |
| Total G.W. | 260kg( estimated) | |
Delivery
| No | Items | Description | |
| 1 | Payment | 70% deposit before production, 30% balance before ship. | |
| 2 | Package | Inner |
1. Bubble film – to prevent from collision during transportation 2. The labels – some free parts labeling. |
| Outer | 1. The export wooden case. | ||
| 3 | Shipment | By express | DHL, UPS, FEDEX,TNT, normally 4 - 6days |
| By airport | From the airport to another airport, Generally 3 – 5days | ||
| By sea | The loading part is Shenzhen, normally 20-30days. | ||
Our services cover all industries and reach all parts of the world.
