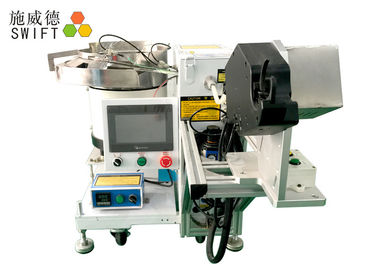

Fixed Type Two Hands Free Cable Tie Machine Auto Binding Objects With Zip Ties
Using loose cable ties 2.5 * 120mm, the tool head is fixed in the desktop. Worker’s two hands are free to pick up the goods. The operation speed is 1.0S.
1 . Product description
The machine uses the vibration bowl feeding and the gun head binding cable ties by itself. There are lots of cable ties to bind in your factory, our machine is very suitable for you. It can improve the binding speed and save much time.
Faster – The operation speed is 1.0S, including binding, cutting off cable ties.
Clever – The automatic cable tie machine have three advantages. One of it is the auto detect failure. It can automatically detect if the cable tie binds successfully. If it fails, the machine would stop at once, deal with the failed cable tie by itself and restart.
Save labor cost – in your company, there are 3 workers to bind wires, if you purchase one our machine, you would find our machine can do two workers’ work and finish the work quickly. That means you will save too much labor cost.
2 . SWT25120F technical parameters
|The tool head fixed in the desktop||No|
|2||Size Of cable size||Width||2.5mm|
|3||Operation speed||For one cable tie||1S|
Max banding Dia.
|For wire||Ø 22mm|
|For tube||Ø 20mm|
|5||Min banding Dia.||For tube / wire||Ø 2mm|
|6||The feeding hose||Length||2.5m|
|7||The bending force||Adjustable|
|8||Voltage||AC220V, 50 / 60Hz|
|9||The gun V.||DC24V (switch automatically)|
|11||Pneumatic pressure||5kg / cm²|
|12||Warranty||1year or 12monthes|
|Tech support all life|
Product details for SWT25120F
1 . If the binding Dia. is less than 2mm, it will be loose.
2 . If the binding Dia. is more the max binding Dia 22mm, pls choose another type machine, such SWT36150F.
3 . There are the tensile forces to choose, including 2kg, 3.5kg, 5kg, 6.5kg and 8kg.
4 . Before ship, we have set all parameters. If you want to set by yourselves, pls pay attention on the English manual.
5 . Offer some free parts kit, such as allen wrench and A509-2 lubricating oil so on.

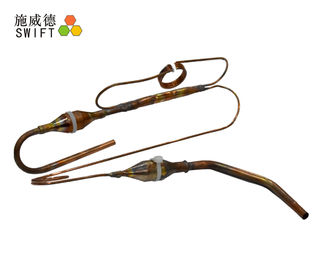

1). Wiring harness.
2). The work pieces with step features.
3). The harness with PVC sleeve.
4). Bags sealing.
|1 . Can you offer free sample?||
No, we can’t. But we can offer free sample of nylon cable ties.
|2 . What information do I let you know before get a quotation?||
1 . The cable tie size
2 . The picture of bundled object.
3 . How do you want to use, handheld type or fixed type or others?
|3 . How do you ship the machines and how long do it take?||
It would take about 30days by sea. If urgent, it can be shipped by air but the freight bears to you. It takes about 5 or 7days.
|4 . How do I know how to operate the machine?||
We offer the English manual and the videos for your check. It is easy to operate.
|5 . How can I get a quotation?||
Pls click “contact now” and send messages to us, you will receive the reply soon.
You can also contact us by email. Pls inform what you want to bundle and the cable tie size or other. Give more info, we would give your more professional suggestion.
