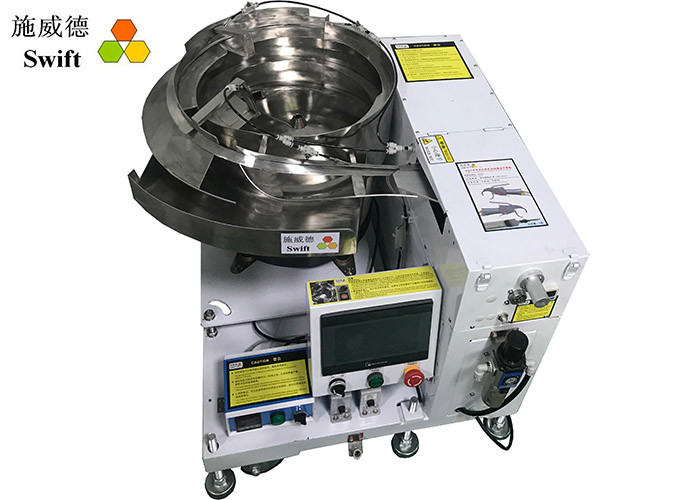

SWT25100F Fixed Auto Cable Tie Machine For Soft Tube Bundling 16mm
0.8S bundle a cable tie! Save time and labor cost!
SWT25100F automatic cable tie Installation Tool features
1. Using pneumatic cutting technology. It can effectively control the uneven phenomenon of tying.
2. With a fixed gun head. Bundle wire harness, soft plastic tubes..
3. With 4 wheels, Easily move.
4. Power: AC220V, 50/60Hz; 1000W; Euro plug
5. Bundle diameter: 2-16mm
Pls inform our sales what goods you want to bundle. And how you bundle them with nylon cable ties so far,
That would help us which automatic zip tie tool is suitable for you.
Technique Parameter for SWIFT nylon cable tie machine
| Model | Cable tie spec. | Min binding Dia. | Max binding Dia. for wire | Max binding Dia. for tube |
| SWT25100F | W2.5 * L100mm | Ø2mm | Ø16mm | Ø17mm |
| Key introduction as bellow | ||||
| 1. Power on/off : after install and test the vibration bowl, power on. | ||||
| 2. Counter : counts the qty of sucessful binding cable ties | ||||
| 3. Alarm : it will alarm if there is any problem or the set qty achieves | ||||
| 4. Emergency switch : pls push the button in the emergency situation to protect the machine | ||||
Auto Cable Tie Tightening Tool Application
Wring harness binding, harness with PVC sleeve and so on.
Soft tubes, plastic tubes,PVC tubes
Cable Tie Cutter Machine Advantage
1. Release hands to handle work pieces. The bundling is done by automatic cable tie gun.
2. Loose nylon cable ties would be sorted and transferred into the cable tie gun automatically.
3. When operator treads the foot pedal, cable ties would be started packaging.
4. Silicone hose is placed between the cable tie gun claws. It would be bundled once you tread the pedal.
5. 0.8S – 1.0S to wrap, tighten and cut off per nylon cable tie.
6. One auto cable tie cutter machine can save 3-5workers and save much time.
7. It improve the efficiency.
Swift service
1 . Warranty: 1year and technical support for whole life.
2 . Serve you in 24hours. If you have any questions, pls don't hesitate to tell us.
3 . Solve any problems of nylon cable tie tool for customers in the fairs. We will attend Productronica in Munich and other fairs.
FAQ
1. How large tubes does SWT25100F bundle using nylon cable ties T25100?
The max diameter of the tube is 16mm. This machine uses 100mm length cable ties(T25100) and can automatically lock the nylon ties.
2. What should I do if the machine has anything wrong?
Pls take videos to us and let’s know the cable tie gun situation and the touch screen situation. In fact, the reason why the machine has problems would be indicated in the touch screen.
3. Does the machine have the manual?
Yes, it does. There is an English manual.
Workers are dealing with the nylon cable ties.
