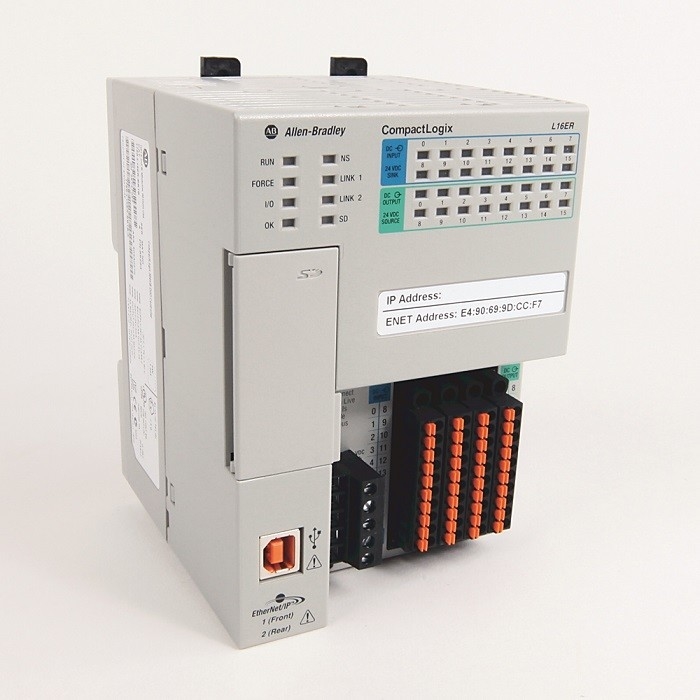

24V DC 1769-L16ER-BB1B Allen Bradley With CompactLogix 384KB DI/O Controller
CompactLogix 384KB DI/O Controller
Product Description of 1769-L16ER-BB1B
Rockwell ControlLogix is a Rockwell Automation system and a scalable control system designed for large-scale applications. It features a powerful processor and a range of inputs/outputs, making it an ideal choice for a wide variety of industrial applications.
Allen-Bradley 1769-L16ER-BB1B CompactLogix 5370 L1 Ethernet Processor Module, Dual Ethernet with DLR capability, 384KB Memory, 1 x USB Programming/Downloading Port, 2 x EtherNet/IP Ports, (16) 24V DC Digital Inputs, (16) 24V DC Digital Outputs, 6 I/O Expansion via 1734 POINT I/O, 4 Ethernet IP Nodes, 24V DC Power, uses POINT I/O (1734) backplane, comes with 1GB SD card and can support up to 2GB SD card.
Technical Parameters of 1769-L16ER-BB1B
| Attribute | 1769-L16ER-BB1B |
| Outputs | 16 |
| Voltage category | 24V DC source |
| Operating voltage range |
10...28.8V DC 24V DC nom |
| Output delay, off to on | 0.1 ms |
| Output delay, on to off | 0.1 ms |
| Off-state leakage current, max | 0.5 mA @ 24V DC |
| On-state current, min | 1 mA per channe |
| On-state voltage drop, max | 0.6V DC |
| Current per point, max | 0.5A |
| Current per module, max | 3 A |
| Surge current per point, max | 1 A for 100 ms per point, repeatable every 2 s |
| Isolation voltage | 50V DC (continuous), Basic Insulation TypeTested at 500V AC for 60 s, system to fieldNo isolation between individual channels |
| Isolated groups | None |
| Pilot duty rating | 0.5 A |
Applications of 1769-L16ER-BB1B
Rockwell Controllogix is an advanced control system from Allen-Bradley, with model number 1769-L16ER-BB1B.
CompactLogix 5370 and Compact GuardLogix 5370 Controller Catalog Numbers
1769-L16ER-BB1B, 1769-L18ER-BB1B, 1769-L18ERM-BB1B, 1769-L18ERM-BB1BK, 1769-L19ER-BB1B, 1769-L19ER-BB1BK, 1769-L24ER-QB1B, 1769-L24ER-QBFC1B, 1769-L24ER-QBFC1BK, 1769-L27ERM-QBFC1B, 1769-L30ER, 1769-L30ER-NSE, 1769-L30ERK, 1769-L30ERM, 1769-L30ERMK, 1769-L30ERMS, 1769-L33ER, 1769-L33ERK, 1769-L33ERM, 1769-L33ERMK, 1769-L33ERMS, 1769-L33ERMSK, 1769-L36ERM, 1769-L36ERMS, 1769-L37ERM, 1769-L37ERMK, 1769-L37ERMS, 1769-L37ERMSK, 1769-L38ERM, 1769-L38ERMK, 1769-L38ERMS, 1769-L38ERMSK
Embedded Power Supply of 1769-L16ER-BB1B
| Attribute | 1769-L16ER-BB1B, |
| Input voltage range | 10...28.8V DC |
| Input voltage, nom | 24V DC |
| Line requirement (VDC), min | 30VA |
| Available 5V DC POINTBus backplane current | 1 A @ 5V DC |
| Current draw @ 24V DC, field power, max | 3 A(1) |
| Inrush, max | 10 A |
| Line loss ride-through | 10 ms...10 s |
| Output bus current capacity, max | 0.1...3 A @ 5V DC |
| Load current, min | 300 mA |
| Power dissipation, max | 12 W |
| Short circuit protection |
Internal fuse Not replaceable |
| Overvoltage protection | Yes |
CompactLogix 5370 L1 Controllers Minimum Spacing Requirements of 1769-L16ER-BB1B
FAQ
Q: What certification does the Rockwell Controllogix have?
A: It has CE certification.
Q: What is the minimum order quantity for Rockwell Controllogix?
A: The minimum order quantity is 1.
Q: What is the packaging details for Rockwell Controllogix?
A: The packaging details are carton box.
Q: What are the payment terms for Rockwell Controllogix?
A: The payment terms are TT.
