| Analog I/O Modules | |
|---|---|
|
Analog Input Modules |

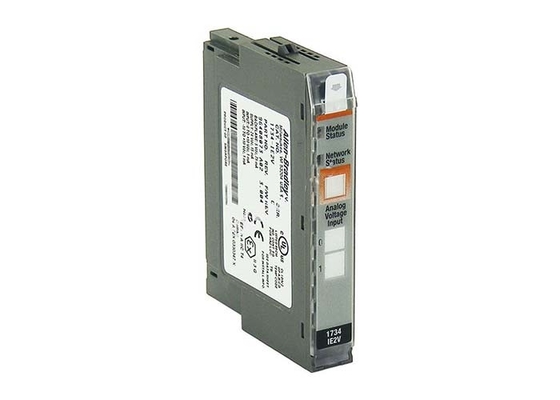

24V Dc 2 Channel Analog Voltage Input Module |
Specifications of 1734-IE2V
| Analog Input Allen-Bradley 1734-IE2V | |
| Manufacturer | Rockwell Automation |
| Series | POINT I/O |
| Module type | Analog Input |
|
Number of Channel |
2 |
| Resolution | 15 bits plus sign across -10...10V |
| Keyswitch Position | 3 |
uts (1734-IE4S) 29
The 1734-IE2V Analog Input Module is a two-channel module that converts an
analog input voltage to a digital value. The module resolution is 16 bits across -
10...+10V. The module has two modes.
• 0...10V DC (default mode)
• +/- 10V dc
• Scaling to any 16-bit signed integer (–32,768...+32,767) -
Default for 1734-IE2V scalers are 0 @ 0V for low
and +10,000 @ 100V for high
• Operates in Unipolar or Bipolar modes
Safety Outputs (1734-OB8S and 1734-OBV2S) 37
Muting Lamp Operation (1734-IB8S) 40
I/O Status Data 41
ATTENTION:
• The safe state of the outputs is defined as the off state.
• The safe state of the module and its data is defined as the off state.
• Use the POINT Guard I/O™ module only in applications where the off state is the
safe state.
Output OFF Input
Inputs to Network OFFNetworks
Safety
Status
44076
Why choose us?
1. There are too much in hand stock and we could offer much competitive price.
2. We have perfect service and provide good shipment suggestion.
3. There are many kinds of them but some may not be loaded in the website. So if you have any requires, pls consult us first.

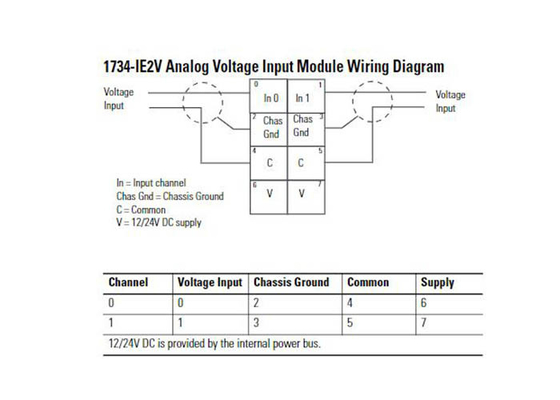

1734-IE2V Wiring diagram
