|Name:||Automatic Cable Tie Machine||Model:||SWT25120F|
|Cable Ties Size:||W2.5 * L120mm||Min Banding Dia.:||Ø2 Mm|
|Max Banding Dia. For Wire:||Ø22 Mm||Max Banding Dia. For Tube:||Ø20 Mm|
|Bundle Speed:||1.0S||Voltage:||AC220V, 50/60Hz|
AC220V Automatic Cable Tie Tool,
AC220V Cable Tying Machine,
UL94V2 Automatic Cable Tie Tool
UL94V2 Indoor AC220V Automatic Cable Tie Tool Cable Tying Machine
There are many different kinds of automatic cable tie tools in our factory, such as handheld cable tie gun, fixed cable tie gun and special cable tie gun for motor coil. Now, let’s introduce one of fixed cable tie guns, SWT25120F.
1. Automatically bundling nylon cable ties T25120 after treading the foot pedal.
2. The bundle speed is 1.0S when you use our cable tie gun. If worker picks the item up and place it in the middle of jaws, it would take about 1.5Seconds. Then it can bundle 1440pcs cable tie in a hour. And a worker picks single cable tie up, wrap, pull and tighten, and cut off, that would take about 6seconds or even more. He/she can bundle 600pcs. It is very slowly.
3. The bundle forces are adjustable. The max bundle force is 8kg. If the force can meet your require, it is should be smaller and better.
4. Cable tie gun can be fixed anywhere that you want. And Operator’s hands are free.
5. The machine is able to handle the work pieces with step feature.
6. Cable tie gun can be applied to full automation line with a robot.
7. Voltage: AC220V, 50/60Hz, pneumatic pressure: 5kg/cm²
|Application||Automatically bundle nylon cable ties in fast speed.|
|Binding speed||1.0S per cable tie|
|Binding object diameter||2mm – 22mm|
|Bundled nylon cable ties sizes||W2.5 * L120mm|
|Cable ties size||W2.5 * L120mm|
|Cable ties head||L4.6L * W4.7 * H3.8mm|
|Color||White, green, others|
|Operation temperature||-30℃ - +80℃|
|Certificate||CE, RoHS, REACH|
|Fixe cable tie gun||*1|
|A plastic box||*1|
|An air tube||*1|
|Small tool case||*1|

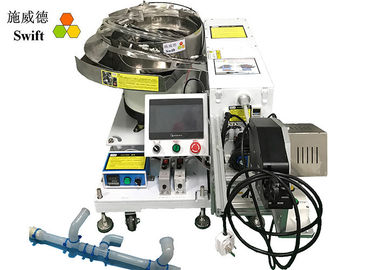

SWT25120F is an automatic cable tie machine with fixed cable tie gun.
Second, it uses nylon cable ties W2.5*L120mm. The diameter of bundled items is from 2mm to 22mm.
The items could be wire harness, plastic tubes, PCB harness, bags of powder and so on.
1. Does the machine produce nylon cable ties?
No, it doesn’t. It can automatically bundle nylon cable ties in fast speed.
2. How long is it from fixed cable tie gun to the host machine?
It is 0.4m. If you need it longer, pls tell us.
3. How do you guide us if the machine has something wrong?
We have clients from Italy, Turkey, UK, USA, Brazil and other countries. We would ask them to send detailed videos to us and help them solve problems.
4. What is the warranty?
1 year warranty and tech support forever. If have any questions, pls tell us.
