Harness Assembly Electric 0.7S Automatic Cable Tie Tool

Harness Assembly Electric 0.7S Automatic Cable Tie Tool
Harness Assembly Electric 0.7S Automatic Cable Tie Tool

Large Image :  Harness Assembly Electric 0.7S Automatic Cable Tie Tool

Product Details:

Place of Origin: China
Brand Name: SWIFT
Certification: CE, RoHS
Model Number: SWT25100H

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden cases
Delivery Time: 10-12days
Payment Terms: T/T
Supply Ability: 100pcs/month
Detailed Product Description
Model: SWT25100H Name: Automatic Cable Tie Machine
Cable Tie Spec.: W2.5 * L100mm Bundle Diameters: 2mm-17mm
Bundle Speed: 0.7S Tensile Forces: 2-8kg
Voltage: Electric Operated, AC220V,50/60Hz Pneumatic Pressure: 5kg/cm²
Certificate: CE, RoHS Handheld Cable Tie Gun Weight: 0.85kg
High Light:

0.7S Nylon Tie Tensioning Tool

,

1000W Cable Tie Machine

Harness Assembly Automatic Cable Tie Packing Machine For Optimal Tensioning Of Cable Ties



The electrically operated automatic cable tie gun SWT25100H is popular home and abroad. It works fully automatically and accelerates harness tying processes. There is a handheld cable tie gun. It is more applicable for inconvenient mobile products.



Advantages



1. Bundle time: 0.7S per setting.



2. Bundle diameters: 2mm – 17mm



3. Handheld cable tie gun weight: 0.85kg. Light, comfortable to hold and operate.



4. Dealing with single cable tie and bundling it in fast speed.



5. Bundling, threading, tightening and cutting are done at the touch of a button – with constant quality.



6. The waste material after cutting would be collected into a box.



7. The bundle forces are adjustable by turning a knob. Bigger numbers, bigger forces.



8. With PLC control system and touch screen.



9. Voltage: AC220, 50/60Hz; pneumatic pressure: 5kg/cm²



Technique data



Model SWT25100H
Cable ties size W2.5 * L100mm (nylon cable ties)
Min bundle diameter 2mm
Max bundle diameter for tube 16mm
Max bundle diameter for wire 17mm
Operation speed 0.7S per setting
Bundle forces 2kg-8kg
Handheld cable tie gun weight 0.85kg
Host weight 140kg
Power 1,000W
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²



SWT25100H details

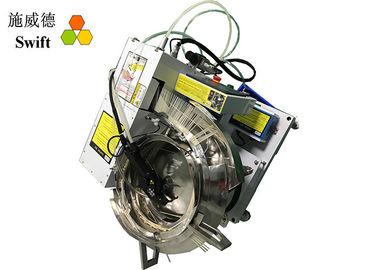

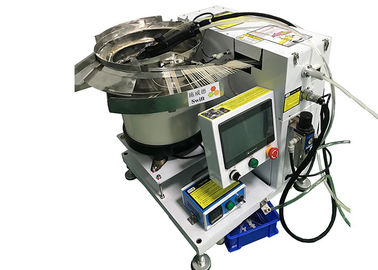

1. Vibration bowl: put loose cable ties here and they would be sorted.



2. Handheld cable tie gun: aim at the bundled object and it should be put in the middle of jaws.

Harness Assembly Electric 0.7S Automatic Cable Tie Tool 0



3. Data cable: connect handheld cable tie gun and host machine.



Package list



Item Qty
Vibration bowl *1
Host machine *1
Handheld cable tie gun *1
Feeding tube *1
A transparent tube *1
An air tube *1
English manual *1
Small tool case *1



Trade terms



1. 100% TT payment before shipment.



2.By sea, DHL/FedEx/UPS



3. Lead time: 10-12days



4.EXW/FOB/CIF



5. Warranty: 1 year and tech support forever



FAQ



1. How long is the feeding tube?

In handheld cable tie machine, it is about 2.2m.



2. Where is the waste material after cutting cable ties?

They would be collected into a box.



3. How can I adjust the binding force?

There is a knob in handheld cable tie gun.Pls turn it and get the force you need.



Harness Assembly Electric 0.7S Automatic Cable Tie Tool 1
