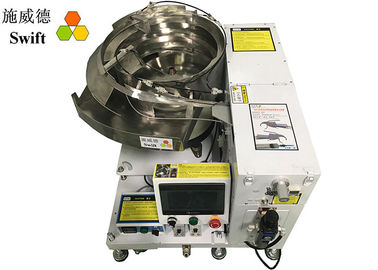

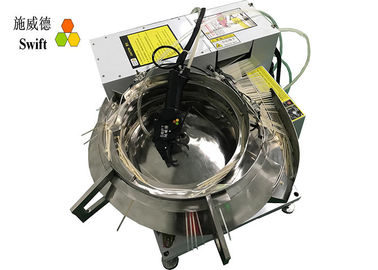

SWT25120H Fast Bundle 0.7S Automatic Cable Tie Packing Machine

SWT25120H Fast Bundle 0.7S Automatic Cable Tie Packing Machine
SWT25120H Fast Bundle 0.7S Automatic Cable Tie Packing Machine

Large Image :  SWT25120H Fast Bundle 0.7S Automatic Cable Tie Packing Machine

Product Details:

Place of Origin: China
Brand Name: SWIFT
Certification: CE
Model Number: SWT25120H

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden cases
Delivery Time: 12 - 15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Detailed Product Description
Name: Automatic Cable Tie Packing Machine Model: SWT25120H
Cable Ties Sizes: W2.5 * L120mm Cable Ties Model: T25120
Binding Diameter: 2mm - 22mm Rapidly Binding Speed: 0.8second
Voltage: AC220V,50/60Hz, Different Plugs Certificate: CE, RoHS
High Light:

plc control cable tie cutter

,

nylon tie tensioning tool

SWT25120H Automatic cable tie packing machine for nylon plastic ties fast bundle 0.7S

Once pulling the trigger, automatically feeding and bundling nylon cable ties. One machine can replace 2 or even more workers.

Product features

1. PLC control system and touch screen,

2. Put nylon cable ties into vibration bowl, they would be automatically loaded and feed into the gun. Don’t put too much every time, 200pcs-300pcs is enough.

3. The binding forces are adjustable by turning a knob. The number is bigger, the force is bigger. The max number is ”4” and it means 8kg.

4. Automatically locking nylon cable ties, cutting off and collecting the waste material into a box.

5. The locking/cutting/collecting speed is 0.8S.

6. The max bundle diameter is 22mm. As long as less it, the machine can automatically adapt different diameters objects.

7. Voltage: AC220V, 50/60Hz, 1phase; Pneumatic pressure: 5kg/cm²

Technique data


ModelSWT25120H
VoltageAC220V, 50/60Hz
Pneumatic pressure5kg/cm²
Packing speed0.8S per cable tie
Packing object diameter2mm – 22mm
Packing forcesAdjustable
Packed nylon cable ties sizesW2.5 * L120mm


Packing machine introduction

1. Vibration bowl: Pls connect with the host machine. Turn on, choose 4 or 5.

2. The handheld cable tie gun: pulling the trigger, starting to lock, tighten and cut off cable ties.

3. The feeding tube: transfer cable ties into cable tie gun

4. Transparent tube: collect the waste material into a box.

SWT25120H Fast Bundle 0.7S Automatic Cable Tie Packing Machine 0

Packing data


ItemPacking sizeN.W./kgG.W./kg
Vibration bowl/wooden case77*65*73cm65kg89kg
Host machine/wooden case84*80*95cm74KG102kg


Applications

Cable binding: wire harness assembly in appliance

Goods fixing and packing: silicon tubes fixing, bags sealing and packing

Related automatic cable tie machines


ModelSWT25100H
Cable ties specW2.5 * L100mm
Bundle speed0.7S
Bundle diameters2mm - 18mm
VoltageAC220V, 50/60Hz
Pneumatic pressure5kg/cm2


FAQ

1. Why cable ties are jammed in vibration bowl?

Put too much cable ties in here. Pls put 200-300pcs per time.

2. Can the machine SWT25120H deal with 2.5*100mm cable ties?

No, it can’t and it deals with 2.5*120mm cable ties. The vibration bowl can load one kind of material and cable tie gun can bundle one too.

3. What certificates do you have?

CE, RoHS and ISO9001:2015.

Packing
SWT25120H Fast Bundle 0.7S Automatic Cable Tie Packing Machine 1
