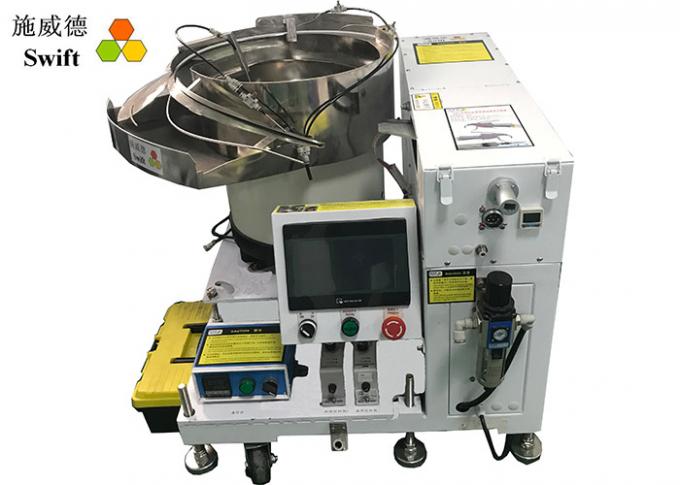

PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast

China PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast supplier

Large Image :  PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast

Product Details:

Place of Origin: China
Brand Name: SWIFT
Certification: CE, RoHS
Model Number: SWT25100H

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden cases
Delivery Time: 10-12days
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Automatic Cable Tie Tool Model: SWT25100H
Using Nylon Cable Ties: W2.5 * L100mm Cable Tie Material: NYLON Pa66
Min Banding Dia.: 2mm Max Banding Dia. For Wire: 18mm
Max Banding Dia. For Tube: 16mm Operation Speed: 0.7S Per Cable Tie

SWT25100H Automatic Cable Tie Tool For Packing Nylon Plastic Ties Fast

Features

1. Vibration feeding, transferred to the Tool via hose.

2. Automatically Wrapping, Perforating, Pulling & Tightening, Cut off, Collecting the waste material into waste tank.

3. Different waste material collecting methods for choice.

4. Ergonomic hand shank design, comfortable to hold & operate.

5. PLC + Touch Pannel controlling, easily to manage.

6. Automatically detect the failure, if the Tool failed to operate the cable tie, the machine would stop immediately, and automatically deal with the failed cable tie, and automatically restart the machine.

7. Automatically detecting cable tie jam, if there is any cable tie jammed in the Tool or in the hose, the machine would stop running and automatically clean the jammed cable tie, and then restart automatically.

Technical data


Model SWT25100H
Using nylon cable ties T25100
Nylon cable ties size of T25100 W2.5 * L100
Min banding dia. 2mm
Max banding dia. for wire 18mm
Max banding dia. for tube 16mm
Operation speed 0.7S
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²


PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast

Related machines


Model SWT25080H SWT25120H
Using nylon cable ties T25080, width2.5mm * length80mm T25120, width2.5mm * length120mm
Min banding diameter 2mm 2mm
Max banding diamete for wire 14mm 22mm
Max banding diameter for tube 13mm 21mm
Operation speed 0.7S 0.8S
Host size/weight L690 * W670 * H670mm/140kg L690 * W670 * H670mm/140kg
Gun size/weight L245 * H95 * T64mm/0.84kg L256 * H108* T64mm/0.86kg


Package

Be packed in two wooden cases.

PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast

FAQ

1. What is your minimum order quantity?

For Auto cable tie tools, MOQ:1 pcs.

For Nylon cable tie,MOQ:200,000 pcs

2. How to control your product quality?

Our factory certified to ISO 9001-2015 quality management system and produces ,We control our products quality in strict accordance with this standard. All products are CE certified and have passed the Reach & RoHS test.
