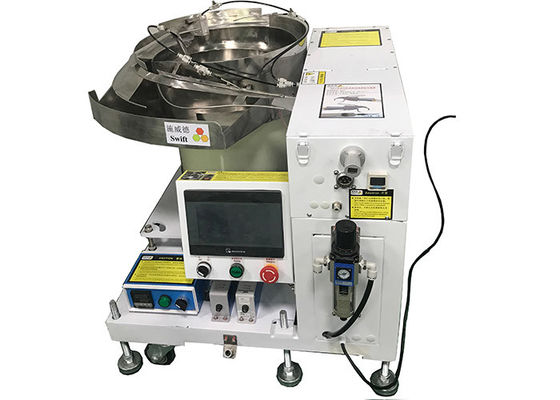

1.2Second Easy Bundle Automatic Cable Tie Tool Machine For Assembly Line Application
Automatic Cable Tie Machine SWT36150F is with a fixed cable tie gun. It can fast bundle nylon cable ties so it usually is applied to assembly line.
Specifications
| Brand | SWIFT |
| Model | SWT36150F |
| Serials | Fixed automatic cable tie guns |
| Functions | 1. Auto wrapping NYLON 66 zip ties |
| 2. Auto tightening NYLON 66 zip ties | |
| 3. Auto cutting NYLON 66 zip ties off | |
| 4. Auto collecting the waste | |
| Features | |
| 1. Max bundle diameter for wire: | 31mm |
| 2. Min bundle diameter for wire: | 3mm |
| 3. Operation speed: | 1.2second every cable tie |
| 4. Using cable ties: | T36150, W3.6mm * L150mm, white/black etc. |
| Sizes and weight | |
| 1.Host size and weight | L720 * W820 * H700mm; 160kg |
| 2. Handheld cable tie gun size and weight | L291 * W240 * T149mm; 4.0kg |
| Electrical power | |
| 1. Host | AC220V – AC240V, 50/60Hz |
| 2. Handheld cable tie gun | DC48V (Auto switch) |
| Pneumatic pressure | 5kg/cm2 |
| Power | 1,000W |
Functions
1. Automatically binding nylon cable ties and cutting the excess tail off after object bundling tightly.
2. Using loose cable ties. It can bundle a lot of plastic ties in short time.
3. The binding speed is 1.2second per cable tie. It can help you save 3 or 4people.
4. The binding forces are adjustable. There is a knob in the cable tie gun.
5. The machine can provide bigger tightening forces than other methods.
6. Pedaled the pedal or reacted by photo-induction, the machine would start to bind, tighten nylon ties and cut them off.
7. Voltage is AC220V – AC240V, 50/60Hz. The power is 1,000W.
Sample Show
Packaging & Delivery
1. Prompt deliver.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. Good after-sale service.
3. Our products have been exported to Germany, Poland, Spain, UK, USA, Brazil, Mexico, Japan, Korea and many other countries.
FAQ
1. Why do the customers need to provide their product pictures to us?
There are some special products that can’t be bundle by cable tie gun. We need to judge and confirm if the machine can meet your requires. Sometimes, clients would send their samples to us to test.
2. How can I adjust the binding forces?
In the cable tie gun, there is a knob to adjust the forces. The value is bigger and the force is stronger.
Our products are sold all over the world, you can rest assured.
