|Name:||Automatic Cable Tie Machine||Model:||SWT25120F|
|Cable Tie Spec:||T25120, W2.5 * L120mm||Max Bundle Dia.:||22mm|
|Min Bundle Dia.:||2mm||Operation Speed:||1S Per Cable Tie|
|Voltage:||AC220V - AC240V, 50/60Hz, Plugs||Pneumatic Pressure:||5kg/cm2|
auto bundling machine,
zip tie tensioner tools

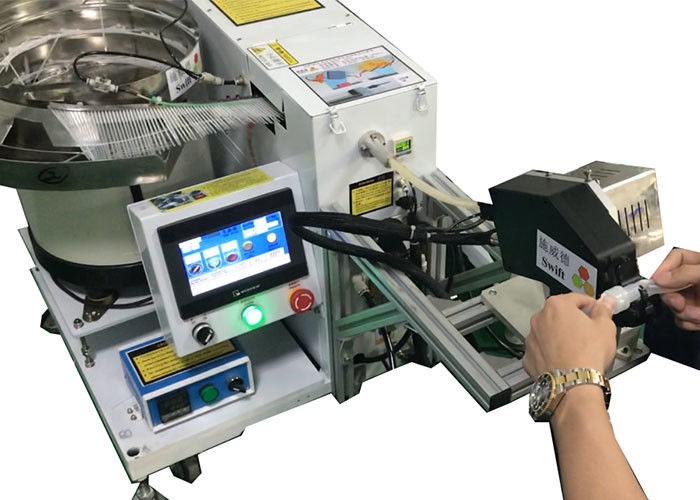

Saving Time Easy Bundle Automatic Cable Tie Gun For Medical Silicone Hose
The automatic cable tie gun is fixed in the workbench. Most clients who produce or assembly the silicone hoses would choose this type gun. It is more convenient to hold theses silicone tubes and operate the cable tie gun.
1. Release hands to handle work pieces. The bundling is done by automatic cable tie gun.
2. Loose nylon cable ties would be sorted and transferred into the cable tie gun automatically.
3. When operator treads the foot pedal, cable ties would be started packaging.
4. Silicone hose is placed between the cable tie gun claws. It would be bundled once you tread the pedal.
5. 0.8S – 1.0S to wrap, tighten and cut off per nylon cable tie.
6. Max bundle diameter for work piece is 22mm. Be automatically adapted different diameters.
7. Ideal for applications with high quality requirements, e.g. large-scale series production.
8. Voltage: AC220V – AC240V, 50/60Hz.
9. There are different binding forces and they are adjusted.
|Serials||Fixed automatic cable tie guns|
|Functions||1. Auto wrapping NYLON 66 zip ties|
|2. Auto tightening NYLON 66 zip ties|
|3. Auto cutting NYLON 66 zip ties off|
|4. Auto collecting the waste|
|1. Max bundle diameter for wire:||22mm|
|2. Min bundle diameter for wire:||2mm|
|3. Operation speed:||1.0S every cable tie|
|4. Using cable ties:||T25120, W2.5mm * L120mm, white/black etc.|
|Sizes and weight|
|1.Host size and weight||L725 * W710 * H670mm; 150g|
|2. Handheld cable tie gun size and weight||L284 * W240 * T149mm; 4kg|
|1. Host||AC220V – AC240V, 50/60Hz|
|2. Handheld cable tie gun||DC48V (Auto switch)|
|The vibration bowl for SWT25120F||*1|
|The host machine for SWT25120F||*1|
|The fixed cable tie gun for SWT25120F||*1|
|The tool kit||*1|
|The English manual||*1|
1. 100% TT before ship.
2. Delivery date: 12-15days.
3. Package: wooden cases.
4. Shipment: EXW, FOB Shenzhen.
5. Warranty: 1 year warranty and tech support forever.
1. How large tubes does SWT25120F bundle using nylon cable ties T25120?
The max diameter of the tube is 22mm. This machine uses 120mm length cable ties(T25120) and can automatically lock the nylon ties.
2. What should I do if the machine has anything wrong?
Pls take videos to us and let’s know the cable tie gun situation and the touch screen situation. In fact, the reason why the machine has problems would be indicated in the touch screen.
3. Does the machine have the manual?
Yes, it does. There is an English manual.
