Rapid Bundle Automatic Cable Tie Tool For Wire Harness Management

Rapid Bundle Automatic Cable Tie Tool For Wire Harness Management
Rapid Bundle Automatic Cable Tie Tool For Wire Harness Management

Large Image :  Rapid Bundle Automatic Cable Tie Tool For Wire Harness Management

Product Details:

Place of Origin: China
Brand Name: SWIFT
Certification: CE
Model Number: SWT25100H

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Wooden cases
Delivery Time: 12 - 15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Detailed Product Description
Name: Automatic Cable Tie Machine For Wire Harness Model: SWT25100H
Cable Tie Spec: T25100, W2.5 * L100mm Max Bundle Dia.: 18mm
Min Bundle Dia.: 2mm Operation Speed: 0.7S Per Cable Tie
High Light:

auto bundling machine

,

zip tie tensioner tools

Rapid Bundle Automatic Cable Tie Machine For Wire Harness Management



Automatic cable tie machine can automatically bundle nylon zip ties. It can help workers not to wrap, pull and tighten nylon cable ties by their hands. Wire harness factories are suitable to use automatic cable tie guns.



Specifications of SWIFT Cable Tie Machine



Brand SWIFT
Model SWT25100H
Serials Handheld automatic cable tie guns
Functions 1. Auto wrapping cable ties
2. Auto tightening cable ties
3. Auto cutting cable ties off
Features
1. Max bundle diameter for wire: 18mm
2. Min bundle diameter for wire: 2mm
3. Operation speed: 0.7S per zip tie
4. Using cable ties: T25100, 2.5mm * 100mm
Sizes and weight

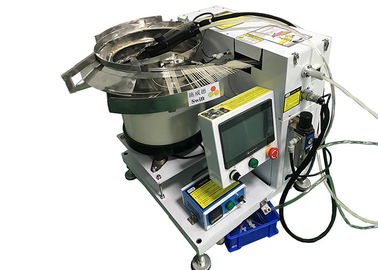

1.Host size and weight L690 * W670 * H670mm; 140kg

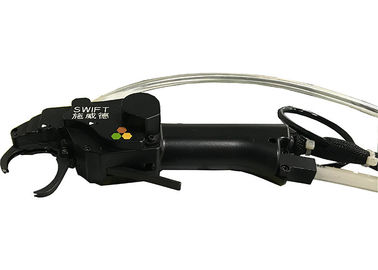

2. Handheld cable tie gun size and weight L250 * W102 * T64mm; 0.85kg
Electrical power
1. Host AC220V 50/60Hz
2. Handheld cable tie gun DC24V (Auto switch)
Pneumatic pressure 5kg/cm2



Functions



1. Operators just put loose cable ties into the vibration bowl. They would be automatically sorted.



2. Once pull the trigger, the handheld cable tie gun would start to wrap, tighten cable ties and cut them off. And the waste would be collected at the same time.



3. The max bundle diameter of SWT25100H is 18mm. Hand-held cable tie gun can bundle wire harness whose diameter is less than 18mm.



4. The bundle forces are adjustable.



5. Ergonomic hand shank design, comfortable to hold and operate.



6. The operation speed is 0.7S. One machine can save 2 or 4 workers.



7. Be suitable for tightening wire harness or components which has step feature.



Packing List



The host machine for SWT25100H *1
The vibration bowl for SWT25100H *1
The handheld cable tie gun for SWT25100H *1
The feeding tube *1
The transparent tube *1
The data cable *1
The tool kit *1
The English manual *1



Package



The host machine(Including the cable tie gun, the tool kit and others): a wooden case

The vibration bowl: a wooden case



How To Use The Machine?



1. Install the vibration bowl in the host machine.



2. Connect the cable tie gun in the host machine.



3. Operate the touch screen then use the machine.



Why Choose Swift?



1. Swift built in 2012 always develops and produces automatic cable tie machines. There are more than 50 patents.



2. More than 300 clients. They are from all over the world, such as Brazil, Mexico, Italy, Spain and Turkey so on.



3. Clients speak highly of our machines.

Rapid Bundle Automatic Cable Tie Tool For Wire Harness Management 0

Rapid Bundle Automatic Cable Tie Tool For Wire Harness Management 1



FAQ



1. Can I use different length cable ties in one automatic cable tie machine?

Usually, different length cable ties are used in different auto cable tie machines. For example, SWT25100H can use T25100, 100mm length cable ties only.



2. Why I must use good quality cable ties in auto cable tie machine?

Automatic cable tie machine is used to help people to lock cable ties fast. The speed can be up to 0.7seconds. If cable ties are deformed, not straight, it is easy to jam in the host machine. And it also had bad impact on the cable tie gun. It would be easy to fail bundle.



3. How about the service?

1 year warranty and tech support forever.
