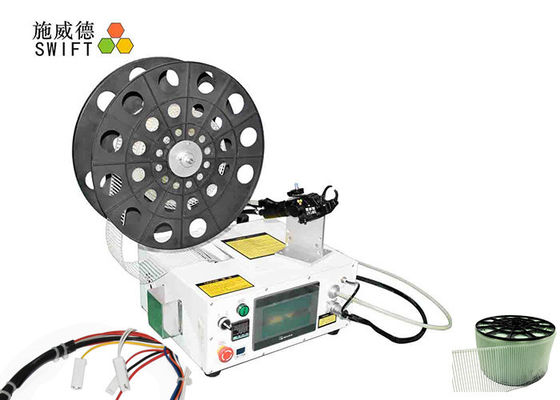

Quickly Locking Automatic Cable Tie Tool, Auto Bundle Machine For Nylon Plastic Ties
Stable automatic cable tie tool uses reel cable ties. It can fast finish bundling one cable tie in 1.0Seconds.
Advantages
1. Using reel cable ties, C25100, W2.5 * L100mm.
2. Without the vibration bowl, it has another sorting system that can distribute reel cable ties.
3. Touch the trigger, the machine starts to work, including wrapping, tightening nylon cable ties and cut them off.
3. All actions take 0.7S every cable tie.
4. There are 4,000pcs cable ties per reel. Don't have to load cable ties often.
5. Pneumatic pressure: 5kg/cm2; Voltage: AC220V, 50/60Hz
SWT25100HC base data
| Description | Automatic cable tie tool | ||
| Model | SWT25100HC | ||
| Cable ties details | Cable ties type | Reel cable ties | |
| Cable tie model | C25100 | ||
| Cable tie width | 2.5mm | ||
| Cable tie length | 100mm | ||
| Tie thickness | 1.1mm | ||
| Tensile strength | 8kg | ||
| Quantity/reel | 4,000pcs | ||
| Max bundling Dia. for wire | 18mm | ||
| Max bundling Dia. for tube | 17mm | ||
| Min bundling Dia. | 2mm | ||
| Bundling speed | 1.0S | ||
| Cable tie gun details | Power | DC24V auto switch | |
| Weight | 0.84kg | ||
| Tension forces | Adjustable by turn knob | ||
| Power supply | AC220V, 50/60Hz | ||
| Pneumatic pressure | 5kg/cm² | ||
| Max Power | 1,000W | ||
| Certificates | CE, RoHS | ||
How to use automatic cable tie gun SWT25100HC?
1. Install reel cable ties in the machine.
2. Install the handheld cable tie gun.
3. Power on, select “Auto”,Click “Start”
4. Pull the trigger, start to bundle cable ties.
Remark:
1. The binding force can be adjusted by turning a knob in the cable tie gun.
2. The run-in period of new cable tie gun is two weeks. During these time, pls don't adjust the max binding force(8kg).
3. After run-in period, the fact binding force would be stronger than the value.
| The binding force | ||||
| The number | 0 | 1 | 2 | 3 |
| The Value | 2.0kg | 4.0kg | 6.0kg | 8.0kg |
Trading details
1. Payment terms: 100% TT before ship.
2. Delivery date: 10-12days
3. Warranty: 12months
4. Tech support forever.
Packing details
The automatic cable tie machine would be packed in a wooden case.
| Item | L * W * H/cm | Weight/kg |
| The host machine | 51 * 47 * 23cm | 30kg |
| Packing size | 60 * 57 * 60cm | 44kg |
RFQ
1. How should I know the machine is what I need?
Pls check if the max diameter of your product is less than the max one for the machine. Or pls contact our sales team to get more details.
2. Do you have videos that other clients used the machines?
Yes, we have. Our clients are from Turkey, Spain and UK so on.
The automatic cable tie tool SWT25100H in Turkey
Our products are sold all over the world, you can rest assured.
