High Speed 0.8S Automatic Cable Stripping Machine For Nylon Zip Ties Bundle

High Speed 0.8S Automatic Cable Stripping Machine For Nylon Zip Ties Bundle

  • High Light

    automatic cable tie machine

    ,

    auto bundling machine

  • Name
    Automatic Cable Tie Tool
  • Model
    SWT36100H
  • Bundle Speed
    0.8S, Very Fast
  • Bundle Dia.
    3mm - 18mm
  • Cable Tiematerial
    Nylon PA66
  • Cable Tie Size
    W3.6 * L100mm
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE, ISO9001: 2015
  • Model Number
    SWT36100H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

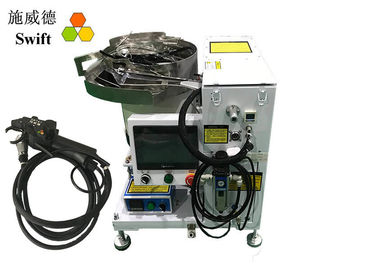

High Speed 0.8S Automatic Cable Stripping Machine For Nylon Zip Ties Bundle

Fast Speed 0.8S Automatic Cable Stripping Machine For Nylon Zip Ties Bundle



Improve the speed of bundling nylon cable ties! Improve the product capacity. The automatic cable stripping machine could automatically wrap, pull and tighten, cut off nylon cable ties.



Features



1. Applications: bundle wire harness/rubber tubes/medical pipes/massage chair airbags with nylon cable ties.



2. The bundle speed is very fast, about 0.8S per cable tie.



3. Using loose nylon zip ties to strap things. One machine, one kind of nylon cable ties size.



4. SWT36100H uses loose zip ties T36100, W3.6 * L100mm.



5. Touch the trigger, then automatically wrap, tighten cable ties, cut off them and collecet waste material into a box.



6. Auto detect jammed: if cable ties are jammed in the hose or gun, it would detect and deal with jammed cable ties.



7. Electirc Voltage: AC220V, 50/60H



SWT36100H specifications



Item Name Automatic cable stripping machine
1 Model SWT36100H
2 Using nylon cable ties T36100
3 Cable ties size W3.6 * L100mm
4 Cable ties material Nylon PA66
5 Bundle things' diameters 3mm - 18mm
6 Bundle speed 0.8S per cable tie
7 Handheld cable tie gun weight 0.86kg
8 Voltage AC220V, 50/60Hz
9 Pneumatic pressure 5kg/cm2
10 Certificates CE



Advantages



1. We are the professional manufacturer of automatic cable tie tools in China, even in the world.



2. Now, we have more than 300 clients who are from all over the world. They are satisfied with our machines.



3. The machines that we make are steady, reliable. It can bundle single nylon cable tie in 0.8S and could continuously work. Some fake automatic cable tie gun is very bad and it would cause cable ties jammed.



Other products



Model SWT25080H SWT25120H SWT36150H
Bundle diameters 2mm - 14mm 2mm - 22mm 2mm - 31mm
Bundle speed 0.7S 0.8S 1.0S
Cable ties size W2.5 * L80mm W2.5 * L120mm W3.6 * L150mm
Cable ties material NYLON PA66 NYLON PA66 NYLON PA66
Cable tie gun Handheld type Handheld type Handheld type
Voltage AC220V AC220V AC220V
