Electric Handheld Automatic Zip Tie Gun For Photovoltaic PV Wire Harness

China Electric Handheld Automatic Zip Tie Gun For Photovoltaic PV Wire Harness supplier

Large Image :  Electric Handheld Automatic Zip Tie Gun For Photovoltaic PV Wire Harness

Product Details:

Place of Origin: China
Brand Name: SWIFT
Certification: CE
Model Number: SWT25120H

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden cases
Delivery Time: 12-15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Automatic Cable Tie Installation Tool Gun Shaped Bundle Speed: 0.8S Per Cable Tie
Bundle Dia.: 2mm - 22mm Application: Tightening And Cutting Cable Ties
Warranty: One Year Model: SWT25120H

Electric Handheld Automatic Zip Tie Gun For Photovoltaic PV Wire Harness



Using automatic zip tie gun to bundle PV wire harness with nylon cable ties, you would save time and improve the production. One zip tie gun can replace 3 or 4 workers' jobs.



Now, the factories that produce photovoltaic PV wire harness use lots of nylon cable ties. Maybe you hire 5 peoples or more to wrap nylon zip ties. You are concerned about how you can save the labor cost and time.



Swift automatic zip tie gun can help you. Pls contact our sales team to get more details.



In photovoltaic industry, customers ask us to make the zip tie gun keep the cable tie tail.



That means the whole cable tie would be left. We can do this.



SWT25120H specifications



Model SWT25120H
Cable tie gun Handheld type and automatic
Cable ties size W2.5 * L120mm
Cable ties material Nylon 66
Cable ties model T25120
Bundle diameters 2mm - 22mm
Bundle speed 0.8S/single cable tie
Voltage AC220V -AC240V, 50/60Hz
Pneumatic pressure 5kg/cm2



Features



1. Handheld cable tie gun can wrap, tighten and cut off nylon cable ties but cable ties are transferred into the gun by vibration bowl.



2. Bundling single cable tie takes 0.8S.



3. Using loose nylon cable ties, Model T25120, W2.5mm * L120mm



4. Binding forces are adjustable. You just turn a knob in the cable tie gun.

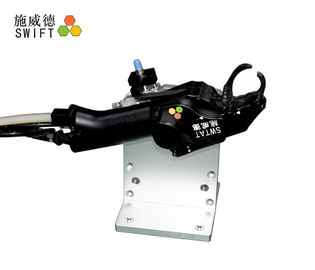

5. Added a fixture, SWT25120H handheld automatic cable tie gun can be used as a fixed one.



6. Be suitable for tightening those components which has step features.



Pneumatic pressure detail



Automatic cable tie tool uses air source to blow cable ties into the handheld cable tie gun.



In the machine, there is an air pressure regulating value. The pressure would influence the location of cable ties in the feeding tube.



In general, the total air source is from 0.5Mpa to 0.6MPa.When the machine is working, air pressure 0.3 – 0.5MPa is enough.



We would regulate this specification before shipping the machine. Customers don’t have to do that.



Electric Handheld Automatic Zip Tie Gun For Photovoltaic PV Wire Harness



FAQ



1. Can it be tightened?



Yes, it can. There are 5 binding forces to choose, such as 2kgf, 3.5kgf, 5kgf, 6.5kgf and 8kgf.



The binding strength The number 0 1 2 3 4
The theoretical value 2kgf 3.5kgf 5kgf 6.5kgf 8kgf
Remark

1. New handheld automatic cable tie gun has a run-in period about 3weeks.

2. After the period, the actual binding strength would be stronger than the theoretical value.

3. During period, don't use the strongest strength.



2. How do I put nylon cable ties?

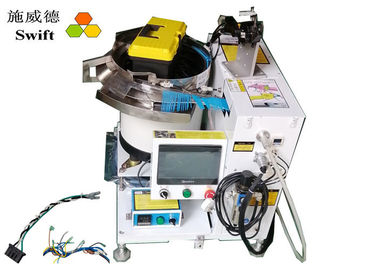

Pls put loose nylon cable ties into the vibration bowl. It would sort and line them.



3. Do you have smaller automatic cable tie tools?



Yes, we have. There are four automatic cable tie tools, SWT25100HC/FC and SWT36200HC/FC. These machines use reel cable ties, not loose cable ties.
