Customized Automatic Cable Tie Tool Tying Water Dispenser Tubes Up To 16mm

Customized Automatic Cable Tie Tool Tying Water Dispenser Tubes Up To 16mm
Customized Automatic Cable Tie Tool Tying Water Dispenser Tubes Up To 16mm

Large Image :  Customized Automatic Cable Tie Tool Tying Water Dispenser Tubes Up To 16mm

Product Details:

Place of Origin: China
Brand Name: SWIFT
Certification: CE, Rohs
Model Number: SWT25100F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden cases
Delivery Time: 12 - 15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Detailed Product Description
Application: Auto Tying Tubes With Nylon Zip Ties Binding Diameters: 2mm -16mm(For Tubes)
Cable Ties Model: T25100 Cable Ties Size: W2.5 * L100mm
Binding Speed: 0.9S Voltage: AC220V,50/60Hz, Different Plugs
High Light:

automatic cable tie machine

,

auto bundling machine

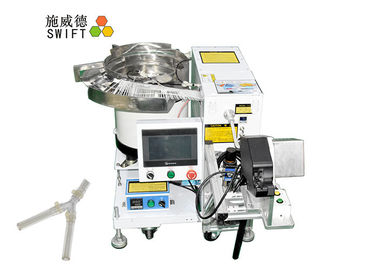

SWT25100F Automatic Cable Tie Tool Tying Water Dispenser Tubes Up To 16mm



Fixed cable tie gun can automatically bind water tubes with nylon cable ties. The plastic tubes total diameter is 16mm. It also is the max binding diameter for tubes.



Features



1. Using nylon cable ties, width 2.5mm and length 100mm.



2. The fixed cable tie gun is fixed in the bench. It is heavy, the weight is 4kg.



3. When tread the foot pedal, cable tie gun starts to bind.



4. The binding forces are adjustable.



5. Turn the knob to adjust the forces.



6. Touch screen and PLC control.



7. The binding diameter for water pipes: 2mm - 16mm



SWT25100F specifications



Model SWT25100F
Name Automatic cable tie tool for packing
Binding diameters 2mm - 16mm
Nylon zip ties size W2.5 * L100mm
Nylon zio ties model T25100
The binding speed 0.9S
Fixed cable tie gun power DC48V
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm2



Applications



Plastic pipes in the water despensers.



Big wire cable with PVC sleeve



FAQ



1. Can I use my own cable ties in the machine?



We could customize the machine based on your cable ties. And it needs 2,000pcs cable ties when to make.



2. Does the machine have CE certificate?



Yes, all machines have.



3. How about the warranty?



1 year warranty and tech support forever.
