Small Automatic Cable Tie System For Wiring Harness Diameter 43mm

Small Automatic Cable Tie System For Wiring Harness Diameter 43mm

  • High Light

    automatic cable tie machine

    ,

    auto bundling machine

  • Machine Model
    SWT36200HC
  • Cable Ties Model
    C36200
  • Cable Ties Size
    W3.6 * H200mm(cable Ties On Chain)
  • Max Banding Dia. For Wire
    Ø43mm
  • Min Banding Dia.
    Ø20mm
  • Operation Speed
    1.3S
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE, RoHS, ISO9001: 2015
  • Model Number
    SWT36200HC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    12-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Small Automatic Cable Tie System For Wiring Harness Diameter 43mm

SWT36200HC Handheld Auotmatic Cable Tie Tool System For Wiring Harness Diameter 43mm

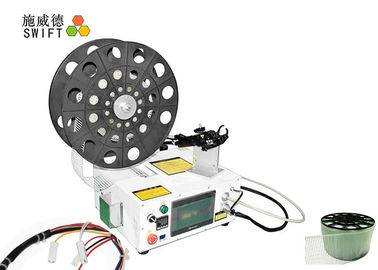

SWT36200HC is small automatic cable tie machine. It is used to install nylon cable ties in fast speed. Be suitable for assembly lines.



SWT36200HC features



1. The machine consists of the host machine, the gun tool and the reel cable ties.



2. Reel cable ties C36200, cable ties size W3.6mm * L200mm.



3. Cable tie gun is handheld type. It is easy to hold and use.



4. Once touch the trigger, it would start to install cable ties.



5. The binding forces are adjsutable. You could make it loose or tight.



6. With big touch screen, easy to manage.



7. Certificate: CE



SWT36200HC specifications



SWT36200HC
Cable ties size W3.6 * L200mm Voltage AC220V,50/60Hz
Operation speed 1.3S/cable tie The gun V. DC24V(auto switch)
Max banding Dia. for wire Ø42mm Power 1,000W
Max banding Dia. for tube Ø40mm Pneumatic pressure 5kg/cm²
Min banding Dia. Ø20mm Certificate CE, RoHS
The bending forces Adjustable Application binding wiring harness



Packing



1/wooden case



FAQ



1. How can I know the machine is what I want?



SWIFT has different kinds of cable tie tool, such as the handheld type, the fixed type, professional using in motor coil and the desktop type. Pls contact us, I will give you suggestions.



2. How about the warranty?



Swift offer 1 year warranty and tech support forever.



3. What is MOQ?



MOQ: 1pcs.
