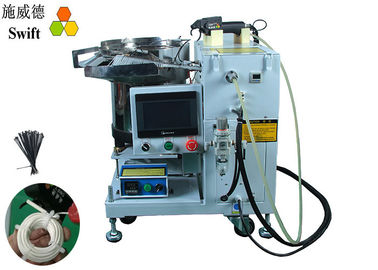

Cable Tie Gun Fastening Automatic Wire Tying Tool  SWT25100H For Nylon Zip Ties 4 Inch

Cable Tie Gun Fastening Automatic Wire Tying Tool SWT25100H For Nylon Zip Ties 4 Inch

  • High Light

    automatic bundling machine

    ,

    wire bundling machine

  • Product Name
    Automatic Cable Tie Gun
  • Appliction
    Automatically Bundle Wires Cable Quickly
  • Model
    SWT25100H
  • Cable Tie Model
    T25100
  • Cable Tie Size
    W2.5mm * L100mm
  • Bundle Wire Cable Diameters
    2mm -18mm
  • Cable Tie Gun Type
    Handheld Cable Tie Gun
  • Voltage
    AC220V,50/60Hz, Different Plugs
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SWIFT
  • Certification
    CE and RoHS
  • Model Number
    SWT25100H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    10 - 15days
  • Payment Terms
    100% T/T
  • Supply Ability
    100pcs/month

Cable Tie Gun Fastening Automatic Wire Tying Tool SWT25100H For Nylon Zip Ties 4 Inch

Cable Tie Gun Fastening Tool SWT25100H For Nylon Zip Ties 4inch Wire Cable Bundle



Handheld automatic cable tie gun SWT25100H is a fastening bundle tool. This cable tie gun deals with nylon cable ties width2.5mm, length 100mm(4inch).



Automatic cable tie gun features



1. The vibration bowl could rank loose cable ties tidily through vibrating.



2. Once pull the trigger, automatically bundle, thread, tighten and cut off cable ties.



3. PLC control and touch screen, Chinese and English language display.



4. Using loose cable ties T25100, 1,000pcs in bag.



5. The host machine is with 4wheels, it is easy to move.



6. Tension forces are adjustable. Turning a knob in the cable tie gun.



7. Voltage: AC220V,50/60Hz; Pneumatic pressure: 5kg/cm²



Automatic cable tie gun specifications



Name SWT25100H
Description Automatic cable tying machine/automatic cable tie system
Features and advantages

1. Use loose cable ties T25100;

2. Bundle products'diameters: 2mm - 18mm

3. Automatic wrapping, tightening and cutting;

4. Automatically adapt different sizes goods within 18mm.

5. With temperature control system used to protect cable ties toughness when in cool winter.

Tool gun size L250 * W102 * H64mm
Host machine size L690* W670 * H670mm
Cable ties T25100 bulk cable ties
Cable ties material Nylon 6.6
Width 2.5mm
Length 100mm
Quantity/bag 1,000pcs
Usage/per time in vibration bowl 250pcs better
Bundling Max Dia. for wire Ø18.0mm
Bundling Max Dia. for tube Ø16.0mm
Bundling Max Dia. Ø2.0mm
Cycle time / Bundling speed 0.7S
Operation Electric powered
Tool head power DC24V
Power supply AC220V, 50/60Hz; Euro/US plug
Pneumatic pressure 5kg/cm²
Max power 1KW
Tension forces Adjustable



Delivery details



1. Delivery time: 3– 15days before confirm payment.



If the machine in stock, it can be sent within 3days once receive the payment.



Or the machine would be sent within 15days.



2. Transportations:



By boat, about 30days;



By air, normally 3 – 4days;



By express, DHL, FEDEX, TNT, normally 5 – 7days.



Packing details



Be packed in 2wooden cases.



How to operate automatic cable tie gun SWT25100H?



1. Place loose cable ties into the vibration bowl.



2. Power on, seclet "auto", click "start".



3. Pull the trigger, the machine would start to work.



4. Keeping stay 3 seconds and loosen the trigger.



5. Bundle sucessfullly.
