Electric Pneumatic Automatic Cable Tie Tool With Auto Bundle Function Collect Waste

Electric Pneumatic Automatic Cable Tie Tool With Auto Bundle Function Collect Waste

  • High Light

    automatic cable tie machine

    ,

    auto bundling machine

  • Name
    Automatic Cable Tie Gun / Automatic Nylon Cable Tie Machine
  • Model
    SWT36150H
  • Single Cable Tie
    W3.6 * L150mm ( Bulk Bags)
  • Bundling Dia.
    3mm - 31mm
  • Power Supply
    AC220V, 50/60Hz, Euro Plug
  • Pneumatic Pressure
    5kg/cm2
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SWIFT
  • Certification
    CE, ISO9001 2015
  • Model Number
    SWT36150H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T available
  • Supply Ability
    100pcs/month

Electric Pneumatic Automatic Cable Tie Tool With Auto Bundle Function Collect Waste

Electric Pneumatic Tie Wrap Cutting Tool With Auto Bundle Function Colloect Waste Material

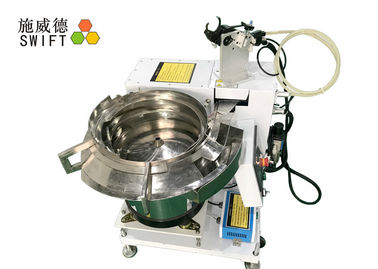

Handheld cable tie gun is easy to operate. There are 4wheels to move easily. It takes 1.0seconds to bundle one cable tie so is useful to save at least 3 workers labor cost.



SWT36150H advantages



1 . Dealing with cable ties W3.6 * L150mm. They are loose cable ties.



2 . Be easy to operate. Once push the trigger, the cable tie gun would automatically bundle products with zip ties.



3 . With automatically detect function. If it is not successful to bundle the cable tie such as wrong operation cause, it would stop and deal with the failed cable tie. Then it works normally.



4 . Be comfortable to hold and operate the gun head.



5 . The tightening force is adjustable.



6. Max bundle diameter is 31mm for wires.



7. Min bundle diamter is 3mm.



SWT36150H basic data



Name Cable tie machine Model SWT36150H Using type Handheld
Cable tie type Loose cable tie Cable tie width 3.6mm Cable tie length 150mm
Size of host machine L890 * W900 * H790mm Weight of host machine 160kg Material Metal
Size of gun head L271 * W116 * H74mm Weight of gun head 0.90kg Certificate CE
Electric power AC220V, 50 / 60Hz Power 1000W Pneumatic pressure 5kg / cm²



SWT36150H technical specifications



Bundling Max Dia. for wire / tube Ø31mm / Ø 30mm Bundling Min Dia. Ø3mm
Operation speed 1.0S Actual pneumatic pressure 3 - 5 kg / cm²
Temperature 40℃ Qty of cable ties per time in vibration bowl 200 – 300pcs



Applications



Rail transportation sector



Electrical installation



Wiring harness



Package



The machine would be packaged in wooden cases. One for the machine, the other one is for the vibration bowl.

SWT36150H automatic cable tie gun packing details
The host machine / wooden case Weight/kg 175kg
Packing Size/cm L101 * W105 * H91cm
The vibration bowl / wooden case Weight/kg 91kg
Packing Size/cm L81 * W71 * H107cm
Total G.W. 266kg( estimated)



Our service



Before sales service – our professional sales man will reply you in time and give the suggestions.



After sales service

1 . We offer 1 year warranty and tech support forever.



2 . We offer online guide on guiding you operate the machine. In China mainland, we can go to your factory and install the machine for you.



FAQ



1. What is the warranty?

1year.



2. What is MOQ?

MOQ: 1pcs



3. Can I use other cable ties in this machine?

No, one cable tie, one machine.
