|Name:||Auto Cable Tie Tool||Application:||Binding Motor Coil Rapidly With Cable Ties|
|Size Of Cable Size:||W2.5 * L120mm||Mix Binding Dia.:||Ø11mm|
|Max Binding Dia.:||Ø15mm||Operation Speed:||1.2S|
automatic cable tie machine,
auto bundling machine

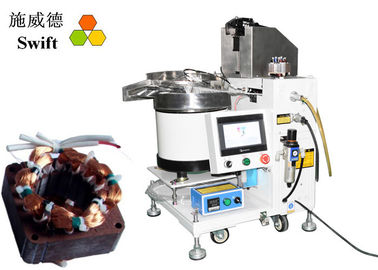

Motor Coil Bundle Automatic Cable Tie Machine 1.2S Binding Speed Max Diameter 15mm
Professional bundle motor coil or items with small operation room. Automatically wrap, pull and tighten cable ties, then cut the excess tails off and collect these water materials into a box. The bundle speed is 1.2S per cable tie.
Automatic Cable Tie Machine Features
1. Using loose cable ties. Operator just put them into the vibration bowl at random. The bowl will sort them in line. Cable ties quantity in the bowl: suggest less than 300pcs per time.
2. Once treading the pedal, machine start to bundle, tightening cable ties until the set binding force reaches.
3. It takes only 1.2S to finish one cable tie bundle.
4. Operator could adjust the binding force by turning the knob.
5. PLC control and Touch panel. It is easy to manage.
6. Automatic detect the failure, the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.
7. Voltage: AC100 -120V, 50/60HZ; AC220 – 240V, 50/60HZ.
8. Pneumatic pressure: 5kg/cm²
Automatic Cable Tie Machine Parameters
|Product name||Automatic cable tie tool|
|Application||Motor coil bundle; Bundle items with small room for cable tie to go through.|
|Loose cable tie||Cable ties size||W2.5 * L120mm|
|Cable ties quantity||1,000pcs cable ties per bag|
|Cable ties material||Nylon 6.6|
|Cable tie tool||Tool size||L331 * W282 * H189mm|
|Bundle diameters||11.0mm -15.0mm|
|Voltage||AC220V, 50/60Hz; AC110V, 50/60Hz|
The host machine/wooden case.
The vibration bowl/wooden case.
1. 100% TT payment before ship.
2. Lead time: 10days or 15days.
3. MOQ: 1pcs.
4. Sea port: Shenzhen or others.
5. Price: EXW, FOB, CIF etc.
Contact Person: Mrs.Amy
