|Product Name:||Wire Tie Tool For Automatic Bundling||Model:||SWT36100H|
|Applictions:||Automatic Threading, Tightening And Cutting Off Cable Ties||Wire Ties:||T36100|
|Tie Width:||3.6mm||Tie Length:||100mm, 4inch|
cable tie installation tool,
bundle wrapping machine
4 Inch Zip Tie Automatic Binding Cable Tie Tensioning Tool For Aircraft Wiring

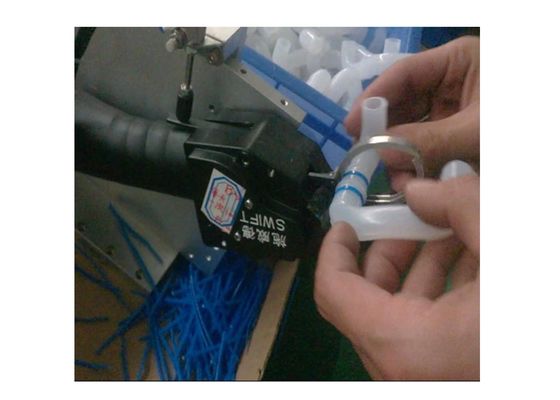

SWT36100H is cable tie tensioning tool is east and quick to use. First hand hold the cable tie gun and aim at your applications, push the trigger, the gun would start to tighten zip ties until the items are bound tightly together.
|1. a handheld gun||Auto bundling items without hands threading and cutting.|
|2. A vibration bowl||Sort materials nylon cable ties|
|3. PLC and touch screen||Logic control, parameter settings|
|4. Wire, switch, connectors||Signal transferred|
|5. Distribution system||Convey cable ties one by one|
1. It could deal with a lot of bulk cable ties a time.
2. Operator only touches zip ties a time when to load materials. No “hamburger hands”.
3. One machine replace 4 – 5workers, save cost.
4. Pull the trigger, automatic winding and insertion, tensioning and cutting.
5. The whole operation takes only 0.8S.
6. Be fitted and customized to full automation line.
SWT36100H base data
|No. 1||Description||Cable tie tensioning tool|
1. Fast bundling cable ties, only 0.8S per cable tie!
2. Without hands threading, pulling and tightening, cutting, the machine would do these actions.
3. Provide a clean cut without sharp cable tie protrusions.
4. Temperature control system to protect cable ties toughness in cold environment.
5. Touch panel with dual languages, Chinese and English.
|4||Cable ties details||Ties type||Bulk cable ties|
|Tie model||T36100 (same size/good quality can be used in this machine)|
|5||Usage/per time in vibration bowl||220pcs enough|
|6||Max bundling Dia. for wire||18mm|
|7||Max bundling Dia. for tube||16mm|
|8||Min bundling Dia.||3mm|
|10||Cable tie gun details||Power||DC24V auto transferred|
|Size||L25 * W10 * T7.8cm|
|Tension forces||Adjustable by turn knob(5settings)|
|11||Power supply||AC220V, 50/60Hz; AC110V, 50/60Hz|
|15||Packing details||Host machine/wooden case||Packing size||L761 * W733 * H862mm|
|Vibration bowl/wooden case||Packing size||L712 * W592 * H941mm|
|Total wooden cases||2pcs|
Aircraft wiring, Auto wiring, harness wiring of white goods etc.
1. How can I know if the machine is suitable to bundle my items?
We could offer some videos for your check according to your items. Or please send the items to our factory, we would test it and feedback videos to you too.
2. What is the payment term?
We accept TT payment. If you have other requires, please contact our sales team.
3. Is there anything wrong if I use other brand cable ties?
It is not sure. But it is no problem when you use SWIFT T36100 cable ties or same good quality other brands’.
