Electrically Powered Zip Tie Tool AC220V/AC110V Max Binding Diameter 10mm

Electrically Powered Zip Tie Tool AC220V/AC110V Max Binding Diameter 10mm

  • High Light

    automatic bundling machine

    ,

    wire bundling machine

  • Product Name
    Zip Tie Tool For Automatic Bundling
  • Brand
    SWIFT
  • Model
    SWT25080H
  • Cable Ties
    W2.5mm * L80mm
  • Cable Ties Model
    T25080
  • Bundling Dia.
    2mm - 14mm
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SWIFT
  • Certification
    CE and RoHS
  • Model Number
    SWT25080H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

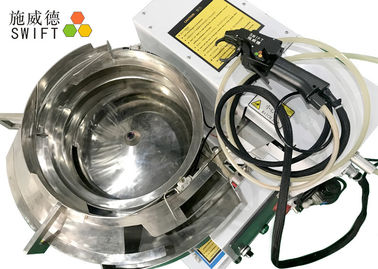

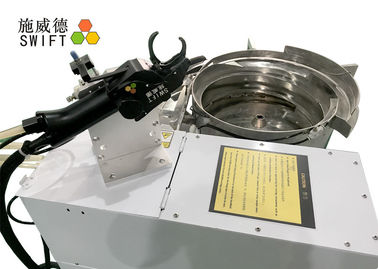

Electrically Powered Zip Tie Tool AC220V/AC110V Max Binding Diameter 10mm

Bundling Fast Speed Autotool System SWT25080H Max Binding Diameter 10mm



The machine could automatic bundle objects without threading and tightening by hands. The max binding diameter is 10mm. It could adapt different diameters objects bundling automatically.



Features



1. Electrically powered cable tie tying machine.



2. Power supply: AC220V/AC110V, 50/60Hz; Tool head output: DC24V, Max. 1,000W.



3. High quality, waste-free bundling.



4. Fast bundling speed up to 0.7S.



5. Tool head can adapt different diameter objects and bundle automatically.



6. Overhead suspension possible.



7. Integration into fully automated production line possible.



8. The binding forces adjustable (2kg, 3.5kg, 5kg, 6.5kg, 8kg).



9. Handheld tool head. It would start to bundle once push the trigger.



10. With either the bench mount kit possible. If you want to use it in the bench, pls inform us in advance.

.

Certification and Approvals



CE and RoHS



Applications



The autotool system SWT2080H is a machine that could help human to speed up the bundling processes and operates waste-free.

It could bundle different diameters objects automatically and cut off the tails of cable ties.

It is suitable for following markets and industries.

Aerospace industry, Solar energy industry, Defence industry and others.



Base data



Name Autotool system SWT25080H
Description Automatic cable tying machine/automatic cable tie system
Features and advantages Use loose cable ties, Electrically operated, Automatic bundling, Automatic adapt different sizes goods
Bench mount kit A metal support, a foot pedal(if need, please inform us in advance)
Overhead suspender Overhead suspender possible(if need, please inform us in advance)
Cable ties T25080 packed in bags, bulk cable ties
Material Nylon / plastic
Width 2.5mm
Length 80mm
Quantity/bag 1,000pcs/bag
Usage/per time in vibration bowl 200pcs – 300pcs better
Bundling Max Dia. for wire Ø10.0mm
Bundling Max Dia. for tube Ø8.0mm
Bundling Max Dia. Ø2.0mm
Bundling speed 1S/cable tie
Operation Electrical
Tool head power DC24V, automatic transfer
Power supply AC110V/AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²
Max power 1,000W
Tension force Adjustable



Packing details



SWT25080H Packing Details
Export wooden case 2pcs
The host machine / wooden case G.W./kg 100kg
Packing Size/cm L75 * W75 * H88cm
The vibration bowl / wooden case G.W./kg 70kg
Packing Size/cm L70 * W60 * H100cm
Total G.W. 170kg( estimated)



Trade terms



1. Payment ways: 100%TT available.



2. 100%payment confirm before ship.



3. Price: FOB Shenzhen, EXW-price, CIF etc.



4. Transportation: by sea, by air, by express or others.
