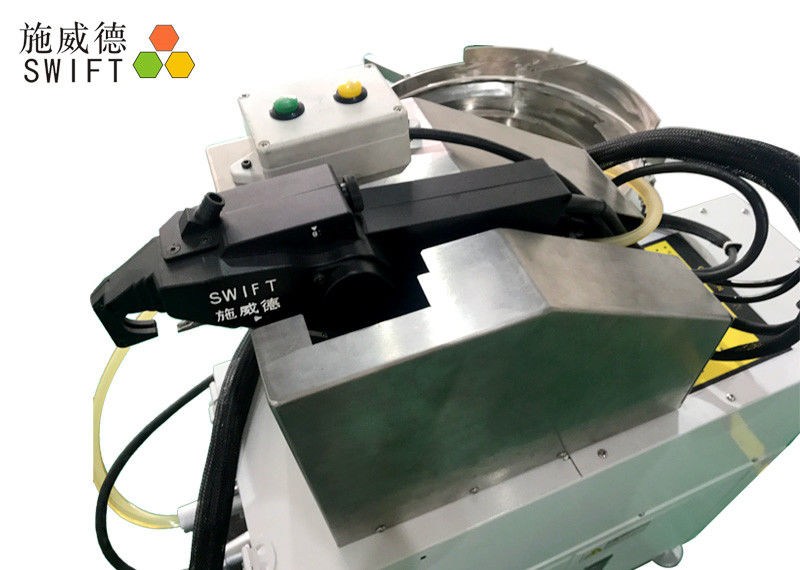

Small Room Bundling Automatic Zip Tie Tool For Motor Coil SWT25100M
Auto zip tie machine SWT25100M is a machine for bundling objects with a small room, such as the motor coil which has been winded on stator core in advance.
SWT25100M advantages
1 . Could replace the winding machine with SWIFT cable tie machine. Cable tie machine is faster and more efficient.
2 . Bundle one cable tie taking 1.2S
3 . Using loose cable ties, transferred to the tool via hose.
4 . PLC, Touch panel controlling, it is easy to operate.
SWT25100M parameters
The host machine for SWT25100M:
| The host machine for SWT25100M | ||
| Model | SWT25100M | |
| M | M means the motor coil | |
| Host size | Length | 690mm |
| Width | 670mm | |
| Height | 670mm | |
| Host weight | 145kg | |
| Temperature | 40℃ suggest | |
| Host power supply | AC220V, 50 Hz / 60Hz | |
| Power | 1,000W | |
| Pneumatic pressure | 5kg / cm² | |
Cable tie gun of SWT SWT25100M:
| Cable tie gun of SWT SWT25100M | |
| Using cable tie | Width 2.5mm * Length 100mm (loose cable ties) |
| Bundling Max Dia. for wire | Ø 13mm |
| Bundling Min Dia. | Ø 9mm |
| Gun tool size | L331 * W282 * H189mm |
| Gun weight | 6.0kg |
| Gun tool power supply | DC24V ( switch auto ) |
How to operate motor coil cable tie machine?
The installation before using:
1 . Install the vibration bowl to the host machine. There are four places to fix the vibration bowl.
2 . Install the gun head to the host machine correctly
3 . If in cold winter, suggest using the temperature control system.
How to use?
1 . Pick the motor coil up and place it in the jaws.
2 . Push the pedal by foot, it would automatically bind it with cable ties.
3 . New user should be trained or read the English manual carefully.
Packing details
| Packing details of SWT25120M cable tie machine for motor coil | ||
| The host machine / wooden case | Weight/kg | 165kg |
| Packing Size/cm | L82 * W79 * H79cm | |
| The vibration bowl / wooden case | Weight/kg | 67kg |
| Packing Size/cm | L68 * W56 * H93cm | |
| Total G.W. | 232kg( estimated) | |
Company advantages
| 1. SWIFT is a professional team who could help you to improve the efficiency of bundling. | 5. We have customized automation lines for clients about cable tie machine. |
| 2. We are a factory with more than 6years history. | 6. Your inquiry would be replied in 24hours. |
| 3. We have a strong R & D department. We have professional engineers with rich experience. | 7. We could offer online or Skype guide. |
| 4. Cable tie machine using loose cable ties is patented product. | 8. 1year warranty and tech support all life. |
Trade terms
1. 70% deposit before production and 30% balance payment before ship.
2. 100%TT payment is available.
3. Shipment ways: by sea, normally 30 -45days.
4. Sea port: Shenzhen, Shanghai or others.
5. By Express, DHL, UPS etc.
Our products are sold all over the world, you can rest assured.
