Automatic Handheld Zip Tie Tool Using Cable Ties 3.6mm Width 120mm Length 220V
1 . Product description.
The zip tie tool can bind the goods using cable ties. This machine uses the zip tis size W3.6 * H120. You can use it in the factory. Pls be sure that there is air source there too.
Features.
Faster – The operation speed is 0.9S. The zip tie tool can automatically wrap, tighten and cut off the cable tie one by one. All operations take only 0.9s. It is less about 5S than by hand.

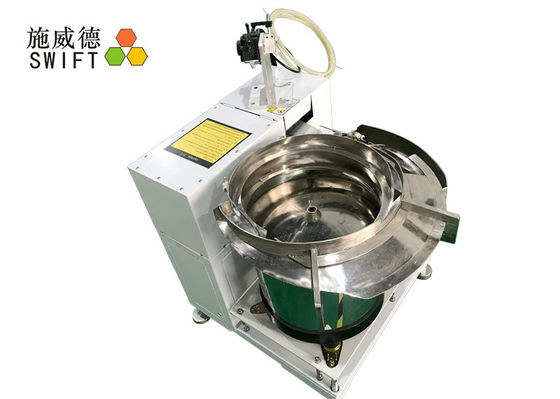

Clever – The automatic cable tie machine have three advantages. One of it is the temperature control system. It can control the temperature of cable tie. As you know, the nylon cable tie would be fragile when in low temperature. You can adjust it 40℃ - 50℃ when to use the machine.
Save labor cost – in your company, there are two workers to bind wires, if you purchase one our machine, you would save one worker labor cost next year even more.
2 . SWT36120H technical parameters
| Item | Description | Value | |
| 1 | Model | SWT36120H | No |
| Handheld type available | No | ||
| 2 | Size Of cable size | Width | 3.6mm |
| Length | 120mm | ||
| Thicker | 1.25mm | ||
| 3 | Operation speed | For one cable tie | 0.9S |
| 4 |
Max banding Dia.
|
For wire | Ø 23mm |
| For tube | Ø 22mm | ||
| 5 | Min banding Dia. | For tube / wire | Ø 2mm |
| 6 | The feeding hose | Length | 2.5m |
| 7 | The bending force | Adjustable | |
| 8 | Voltage | AC220V, 50 / 60Hz | |
| Euro plug | |||
| 9 | The gun V. | DC24V (switch automatically) | |
| 10 | Power | 1000W | |
| 11 | Pneumatic pressure | 5kg / cm² | |
| 12 | Warranty | 1year or 12monthes | |
| Tech support all life | |||
3 . Product parameters
1 . The weight of the gun tool is 0.88kg. The size is L256 * W108 * H670mm.
2 . It is suitable that pneumatic pressure is between 0.3mpa - 0.5mpa.
3 . The tensile strength: 12kg.
4 . Applications
All kinds of wiring harness.
The bottles of peanut oil.
The food bags.
The auto parts with wires
The motor coil.
5 . FAQ
| FAQ | |
| Question | Answer |
| 1. What equipment do you have? | We are automatic cable tie machine manufacturer. |
| 2. How long is the production time? | It takes about 10days or 15days. |
| 3. How long do you spend making a sample? |
We don’t offer the sample of machine. We’d like to offer you some videos for your check. Or welcome to visit our factory. |
| 4. If my order is very urgent, how long you can proceed? | In general, there are enough machines in stock. If your order is urgent, pls contact the sales man. |
| 5. How can I get a quotation? |
Pls click “contact now” and send messages to us, you will receive the reply soon.
You can also contact us by email. Pls inform what you want to bundle and the cable tie size or other. Give more info, we would give your more professional suggestion. |
Our products are sold all over the world, you can rest assured.
